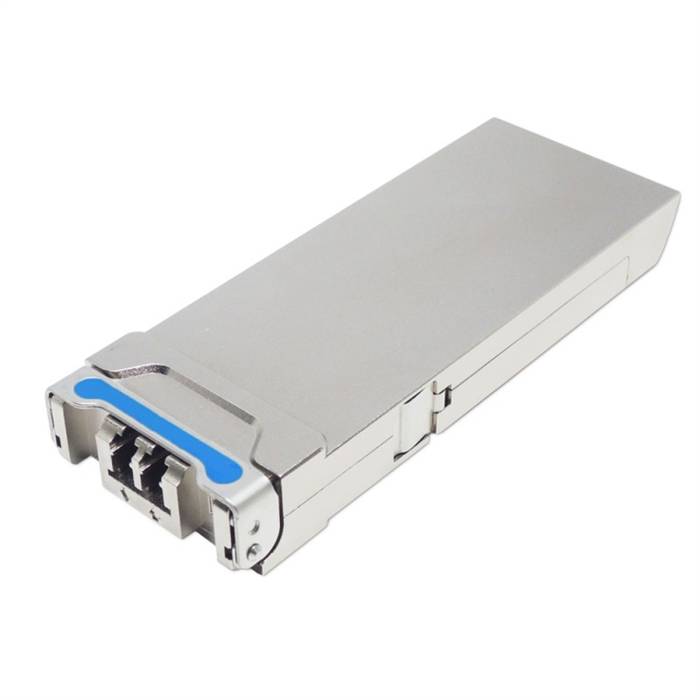

Cisco CFP2-100G-ER4 100GBASE-ER4 CFP2 Module for SMF (<40 km)
Genuine Cisco CFP2-100G-ER4

Our Price: $45,000.00
Warranty: 1 Year Warranty
Availability: Call


Product Code: CFP2-100G-ER4
Qty:

Description

The Cisco CFP2-100G-ER4 100GBASE CFP2 modules offer customers 100 Gigabit Ethernet connectivity options for data center networking, enterprise core aggregation, and service provider transport applications.

Features and benefits

Main features of Cisco 100GBASE CFP2 modules include:
  • Supports 100GBASE Ethernet and OTU3 rates
  • Hot-swappable input-output device that plugs into an Ethernet CFP2 port of a Cisco switch or router
  • Provides flexibility of interface choice
  • Supports “pay-as-you-populate” model
  • Supports Digital Optical Monitoring (DOM)
  • Supports the Cisco quality identification (ID) feature, which enables a Cisco switch to identify whether the module is certified and tested by Cisco

Cisco CFP2-100G-ER4

The Cisco 100GBASE-ER4 CFP2 module can support link lengths up to 40 kilometers on standard duplex single-mode fiber (SMF, G.652) terminated with LC optical connectors. The 100 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. The Cisco 100GBASE-ER4 CFP2 module meets the IEEE 802.3ba requirements for 100GBASE-ER4 performance and also supports DOM of the transmit-and-receive optical signal levels.

Specifications
  • Product Number: CFP2-100G-ER4
  • Description: Cisco 100GBASE-ER4 CFP2 Module for SMF (<40 km)
  • Connector: Dual LC/PC connector
  • Wavelength: 1310nm
  • Cable Type: SMF Duplex
  • Cable Distance: 40km
  • Transmit Power (dBm):
    • Maximum: 2.9 per lane
    • Minimum: -2.9 per lane
  • Receive Power (dBm):
    • Maximum: 4.5 per lane
    • Minimum: -20.9 per lane
  • Transmit and Receive Center Wavelength Range (nm): Four lanes: 1295.6 nm, 1300.1 nm, 1304.6 nm, and 1309.1 nm

Dimensions
  • Dimensions (D x W x H): 144.8 x 82 x 13.6 mm.
  • Cisco CFP2-100G-ER4 CFP2 modules typically weigh less than 300 grams.

Environmental conditions and power requirements
  • The operating temperature range is from 32 to 158°F (0 to 70°C).
  • The storage temperature range is -40 to 185° F (-40 to 85° C).
  • The maximum power consumption per Cisco CFP2-100G-ER4 module is 8W.


Platform Support

Cisco CFP2-100G-ER4 CFP2 modules are supported on Cisco switches and routers. For more details, refer to the document Cisco 100-Gigabit Ethernet Transceiver Modules Compatibility Matrix.
