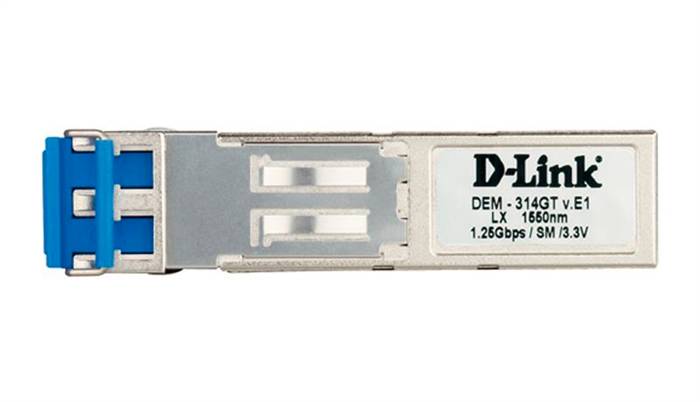

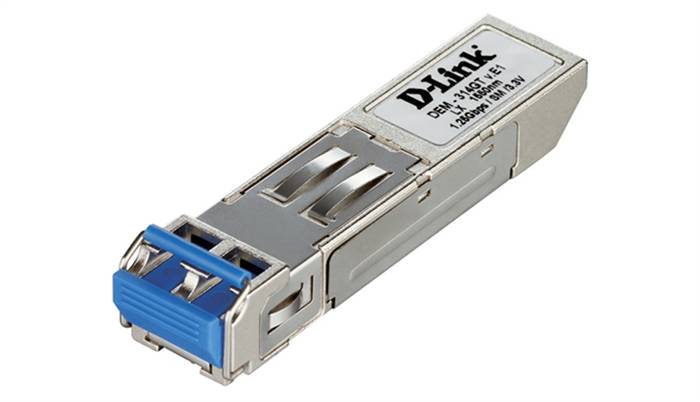

D-Link DEM-314GT 1000BASE-LX Single-Mode 50 Km SFP Transceiver

D-Link’s new line of Small Form-Factor Pluggables (SFPs) transceivers give you an industry-leading combination of performance and affordability. The DEM-314GT is a high-performance 1550 nm single-mode SFP transceiver supporting full-duplex Gigabit speeds on single-mode fiber for distances of up to 50 km. The unit features a metal housing to reduce EMI and to increase durability.

Features

• Single-mode fiber transceiver
• Up to 50 km signal transmission
• Hot-pluggable
• Duplex LC connector
• MSA, RoHS-compliant

Specifications

• EMI: FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B
• Safety: FDA/CDRH, TUV, cUL
• Hot Pluggable: Yes
• MSA Compliant: Yes
• RoHS Compliant: Yes
• Hardware version: E1
• connector: Duplex LC Connector
• single/bi Direction: single-direction
• Wavelength: 1550 nm
• Output Optical Power (TX Optical Power): MAX.: 0 dBm
• Interface: MIN.: -23 dBm
• Input Optical Power (RX Optical Power): MAX.: -3 dBm
• Sensitivity: -23 dBm
• Cable Type: single-mode 9/125um fiber
• Power: 3.3V
• Max Input Current: 300mA
• Power Budget (MIN Power Budget): 17 dB
• MAX Power Budget: 23dB
• Heat Generated: 1.90kJ/h
• Operation Temperature: 0-70°C
• Storage Temperature: -40-85°C
• Humidity (Operating): 10% ~ 90%
• Humidity (Storage): 5% ~ 90%
• Dimension ( W x D x H ): 13.4mm x 56.4mm x 10.35mm
• Weight: 17.8g
• Speed: 1Gbps
• Compliant Standard: IEEE-802.3z 1000BASE-LHX
• Transceiver Type: SFP
• Fiber Channel FC-PI standard: 100-SM-LL-V
• Fiber Media support: Single-Mode
• Distance: 50KM
