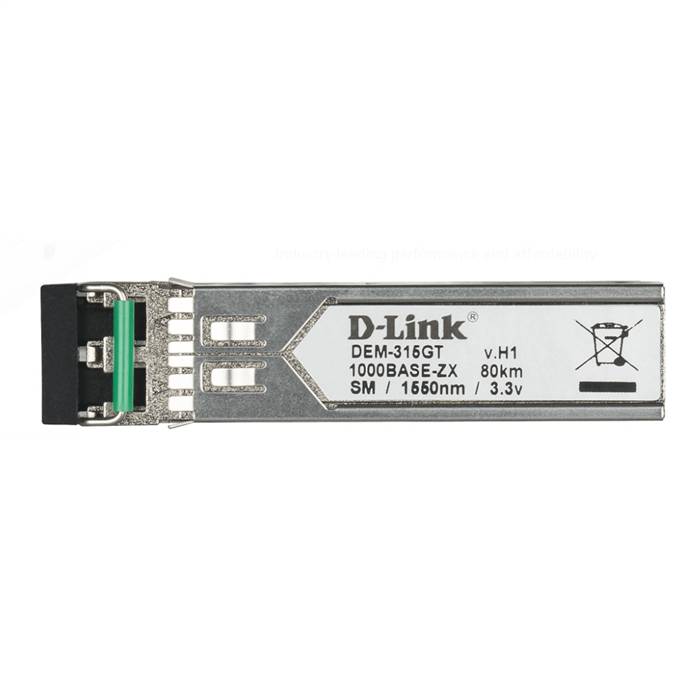

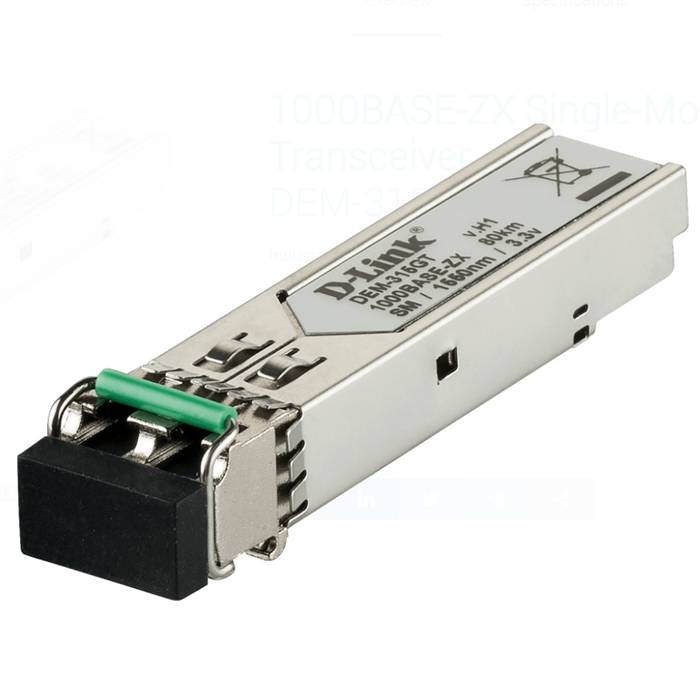

D-Link DEM-315GT 1000BASE-ZX Single-Mode 80 Km SFP Transceiver

D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry-leading combination of performance and affordability. The DEM-315GT is a high-performance 1550 nm single-mode SFP transceiver supporting full-duplex Gigabit speeds for distances of up to 80 km. The unit features a metal housing to reduce EMI and to increase durability.

Features

• Single-mode fiber transceiver
• Up to 80 km signal transmission
• Hot-swappable
• MSA, RoHS-compliant

Specifications

• Hot Pluggable: Yes
• MSA Compliant: Yes
• RoHS Compliant: Yes
• Fiber Channel FC-PI standard: 100-SM-LL-V
• Compliant Standard: IEEE-802.3z 1000BASE-ZX
• Transceiver Type: SFP
• Fiber Media support: Single-Mode
• Distance: 80KM
• Speed: 1Gbps
• connector: Duplex LC Connector
• single/bi Direction: single-direction
• Wavelength: 1550 nm
• Output Optical Power (TX Optical Power): MAX.: 5 dBm
• Input Optical Power (RX Optical Power): MAX.: -3 dBm
• Interface: MIN.: -23 dBm
• Sensitivity: -23 dBm
• Cable Type: single-mode 9/125um fiber
• Max Input Current: 300mA
• Power: 3.3V
• Power Budget (MIN Power Budget): 23dB
• MAX Power Budget: 18dB
• Heat Generated: 2.37kJ/h
• Operation Temperature: 0-70°C
• Storage Temperature: -40-85°C
• Humidity (Operating): 10% ~ 90%
• Dimension ( W x D x H ): 13.4mm x 56.4mm x 10.35mm
• Humidity (Storage): 5% ~ 90%
• Weight: 17.8g
• EMI:: FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B
• Safety:: FDA/CDRH, TUV, cUL
