D-Link DEM-410T 10GBASE-T Copper SFP+ Transceiver

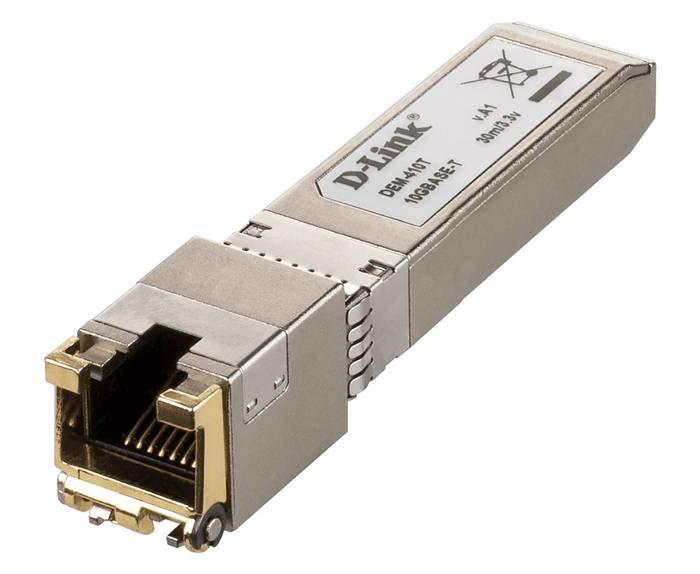

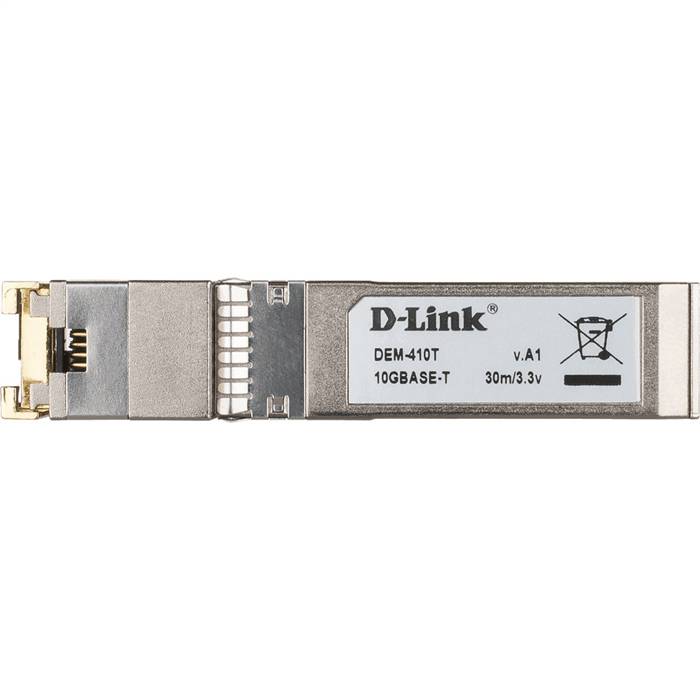

The D-Link DEM-410T 10GBASE-T Copper SFP+ Transceiver Module is a hot-swappable SFP (Small Form-Factor Pluggable) transceiver that plugs into standard SFP slots on switches and supports 10-Gigabit Ethernet and Gigabit Ethernet. The DEM-410T o?ers a wide variety of connectivity options for data centers, enterprise wiring closets, and service provider transport applications. The DEM-410T is an external transceiver designed for insertion into SFP+ slots of network devices for transmission and reception of data signals from fiber ports. These transceivers provide 10-Gigabit over CAT6A (or better) up to 30m.  They also support 1-Gigabit speeds over CAT-5e (or better) up to 100m.

Features

• Compliant with IEEE 802.3an 10 Gigabit Standard
• Compliant with IEEE 802.3ab Gigabit Standard
• MSA, RoHs Compliant
• Maximum distance of 30 m (CAT6A @ 10Gbps)
• Maximum distance of 100 m (CAT5e @ 1Gbps)
• RJ-45 connector type

Specifications

• Transceiver Type: SFP+
• Speed: 10 Gbps
• Distance: 30m (CAT6A@10Gbps)<br>100m (CAT5e@1Gbps)
• Compliant Standard: IEEE 802.3an 10GBASE-T<br>IEEE 802.3ab 1000BASE-T
• Connector: RJ45
• Power Supply: 3.3V
• Operating Temperature Range: 0~65?
• Hot Pluggable: Yes
• Cable Type: CAT6A
• MSA Compliant: Yes
• RoHS Compliant: Yes
