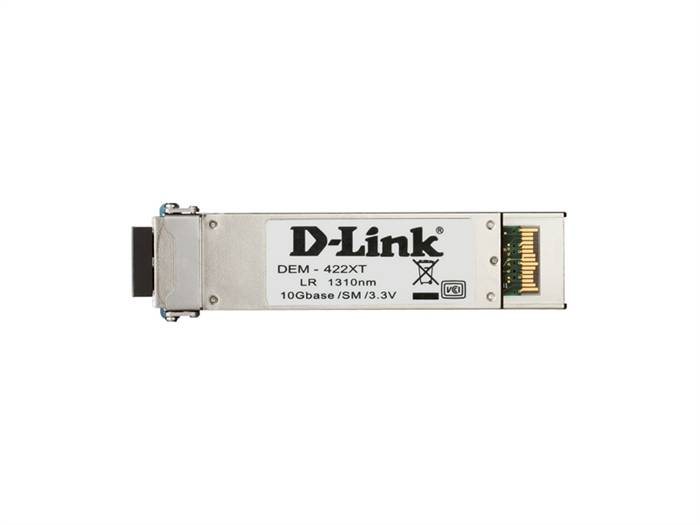

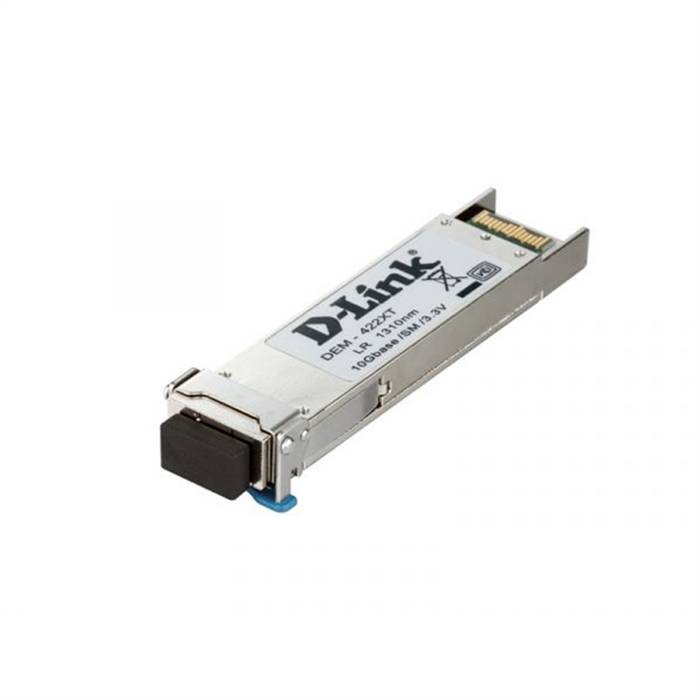

D-Link DEM-422XT 10GBASE-LR Single-mode 1310nm 10KM XFP Transceiver

D-Link’s 10G XFP Module series are hot-swappable transceivers that plug into XFP slots on switches and support 10G Ethernet. This transceiver provides high-speed operation and physical compactness to deliver the speed, reliable long-distance data transfer, and deployment flexibility that today’s fiber networks require.

 The D-Link 10GBase XFP Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, high-performance servers, LAN, WAN and MAN networks.

 The DEM-422XT transceiver uses standard duplex LC connector for fiber cable connection. It conforms to industry standards and is interoperable with D-Link 10 Gigabit Ethernet switches. All D-Link transceivers are hot-pluggable. Hot-swap capability allows network administrators to plug or unplug it from the XFP slot without having to turn off the power of the connected device.

Specifications

• Standard: IEEE 802.3ae 10GBase-LR
• Wavelength: 1310 nm
• Data Rate: 10 Gbps
• Connector: Duplex LC
• Fiber Type: 9/125 um Single-mode Fiber
• Maximum Fiber Cable Length: 10 km
• Transmit Power Range: 0.5 to -8.2 dBm
• Receive Power Range: 0  to -14.4 dBm
• Sensitivity: -14.4 dBm
• Supported Features
• Hot swap
• MSA compliant
• RoHS compliant
• Power Support: 3.3 V
• Supply Current: 450 mA
• Temperature
• Operating: 0° to 70°C
• Storage: -40° to 85°C
• Humidity
• Operating: 0% to 85%
• Storage: 0% to 95%
• Dimensions: 77.9 mm x 18.3 mm x 8.5 mm
• Certificates
• Class 1 laser: EN 60825-1
• FDA 21 CFR 1040.10 ? 1040.11
