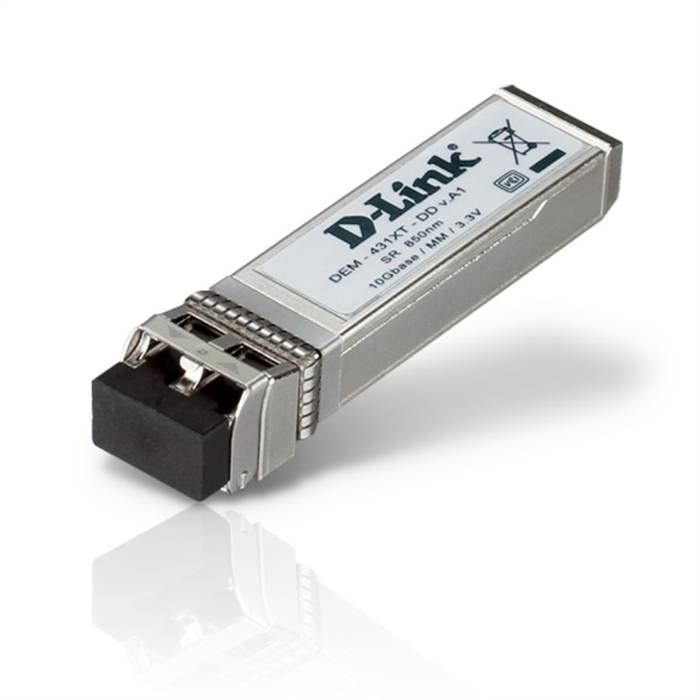

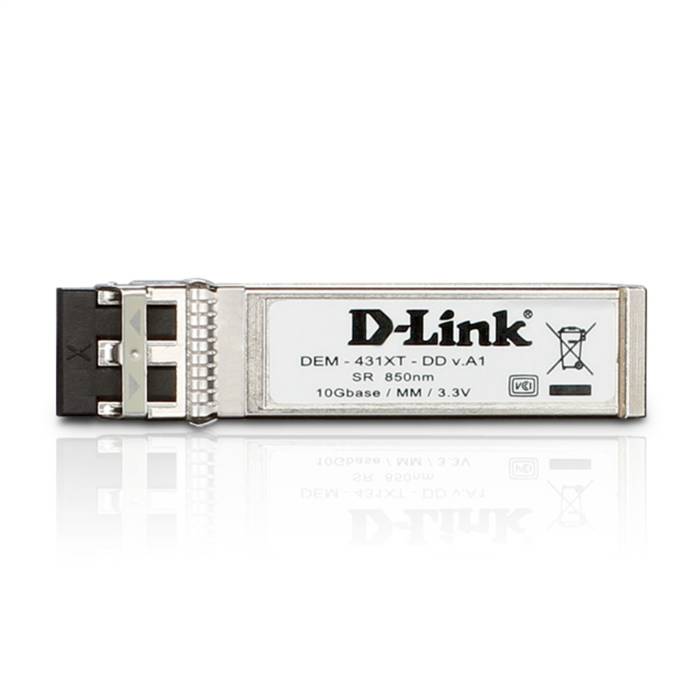

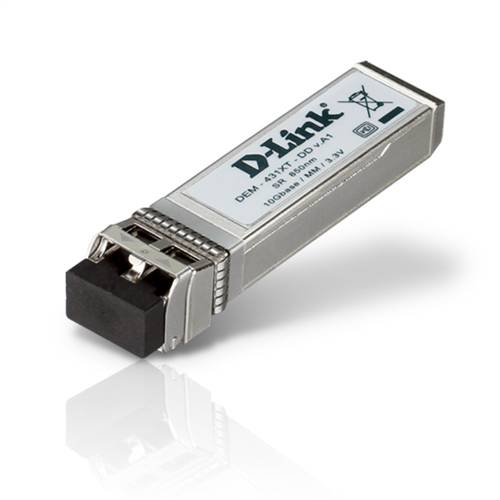

D-Link DEM-431XT-DD 10GBase-SR SFP+ Transceiver, DDM, 80/300m

D-Link DEM-431XT-DD SFP+ transceiver supports up to 300m link lengths over MMF via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumptionand and high speed, this 10G SFP+ transceiver is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.

Specifications

• Part Number: DEM-431XT-DD
• Brand: D-Link
• Form Factor: SFP+
• Max Data Rate: 10.3125Gbps
• Wavelength: 850nm
• Max Cable Distance: 300m
• Connector: Duplex LC
• Media: MMF
• Transmitter Type: VCSEL
• Receiver Type: PIN
• TX Power: -7.3~-1dBm
• Receiver Sensitivity: < -11.1dBm
• Powerbudget: 3.8dB
• Receiver Overload: -1dBm
• Typical Power Consumption: <1W
• Extinction Ratio: >3dB
• Commercial Temperature Range: 0 to 70°C (32 to 158°F)
• Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
