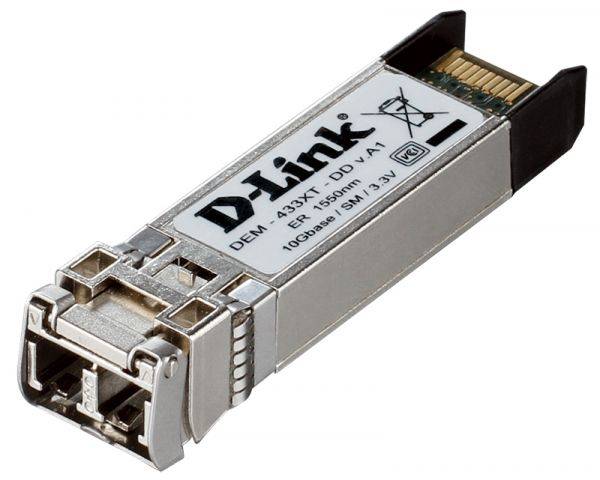

D-Link DEM-433XT-DD SFP Transceiver 1 Port 10GBASE-ER (with DDM) for singlemode fiber optic cable, power supply 3.3V (up to 40km)

THis D-Link DEM-433XT-DD is a high performance and cost-effective SFP+ module, supporting data-rate of 10.3125Gbps (10GBASE-ER) or 9.953Gbps (10GBASE-EW) over single mode optical fiber. This Product is programmed to be compatible with a wide range of D-Link network equipment, such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and Media Converters. Additionally, it also provides a unique enhanced digital diagnostic monitoring interface(DDMI) per SFF-8472, which providing real-time monitoring of the transceiver optics temperature, laser bias current, optical power, received optical power and transceiver optics supply voltage.

Features

• Electrical interface compliant to SFF-8431
• 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER
• 1550nm EML transmitter, PIN photo-detector
• Distance up to 40km on single mode fiber
• Single 3.3V power supply
• Metal enclosure, for lower EMI
• ROHS compliant and lead-free

Specifications

• Part Number: DEM-433XT-DD
• Brand: D-Link
• Form Factor: SFP+
• Data Rate: 10Gb/s
• Wavelength: 1550 nm
• Fiber Type: SMF
• Max Distance: 40 km
• Optical Components: EML/PIN
• Transmitter Power: -2 ~ 3 dBm
• Extinction ratio: > 6 dB
• Receiver Sensitivity: < -16 dBm
• Receiver Overload: > 0.5 dBm
• Connector: LC Duplex
• Digital Diagnostic Monitoring: Yes
• Environment
• Operating: 0°C to 70°C
• Storage: -40°C to 85°C
• Weight: 0.03 kg
• Application
• 10GBASE-ER/10GBASE-EW Ethernet
• 10G Fiber Channel
• 10GbE Data Center Switches and Routers
• Compliance
• IEC/EN 61000-4-2,IEC-60825
• FDA 21CFR 1040.10 and 1040.11
• RoHS
