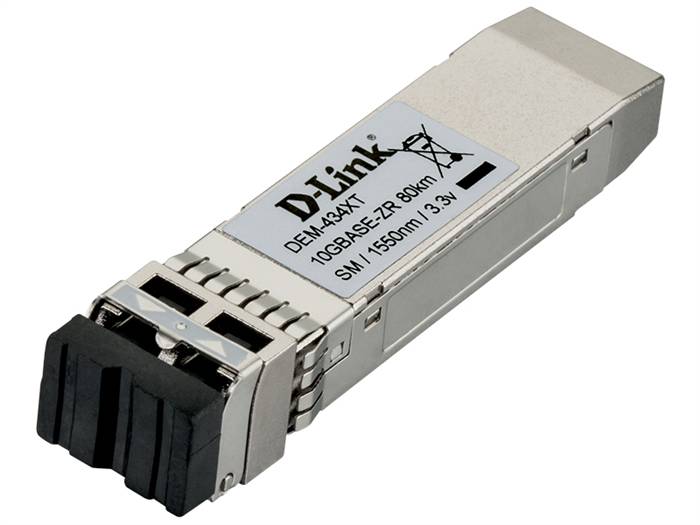

D-Link DEM-434XT-DD 10GBase-ZR SFP+ Transceiver (SMF, 1550nm, 80km, LC, DOM)

D-Link DEM-434XT-DD is a high performance and cost-effective SFP+ transceiver module, supporting data-rate of 10.3125Gbps (10GBASE-ZR) or 9.953Gbps (10GBASE-ZW) over single mode optical fiber. This Product is programmed to be compatible with a wide range of D-Link network equipment, such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and Media Converters. Additionally, this module also provides a unique enhanced digital diagnostic monitoring interface(DDMI) per SFF-8472, which providing real-time monitoring of the transceiver optics temperature, laser bias current, optical power, received optical power and transceiver optics supply voltage.

Features

• Electrical interface compliant to SFF-8431

• Compliant with SFF-8472
• 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ZR
• 1550nm EML transmitter, APD receiver
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Metal enclosure, for lower EMI
• ROHS compliant and lead-free

Specifications

• Part Number: DEM-434XT-DD
• Brand: D-Link
• Form Factor: SFP+
• Data Rate: 10Gb/s
• Wavelength: 1550 nm
• Fiber Type: SMF
• Max Distance: 80 km
• Optical Components: EML/APD
• Transmitter Power: 0 ~ 5 dBm
• Extinction ratio: > 7 dB
• Receiver Sensitivity: < -24 dBm
• Receiver Overload: > -7 dBm
• Connector: LC Duplex
• Digital Diagnostic Monitoring: Yes
• Environment
• Operating: 0°C to 70°C
• Storage: -40°C to 85°C
• Weight: 0.03 kg
• Application
• 10GBASE-ZR/10GBASE-ZW Ethernet
• 10G Fiber Channel
• 10GbE Data Center Switches and Routers
• Compliance
• IEC/EN 61000-4-2,IEC-60825
• FDA 21CFR 1040.10 and 1040.11
• RoHS
