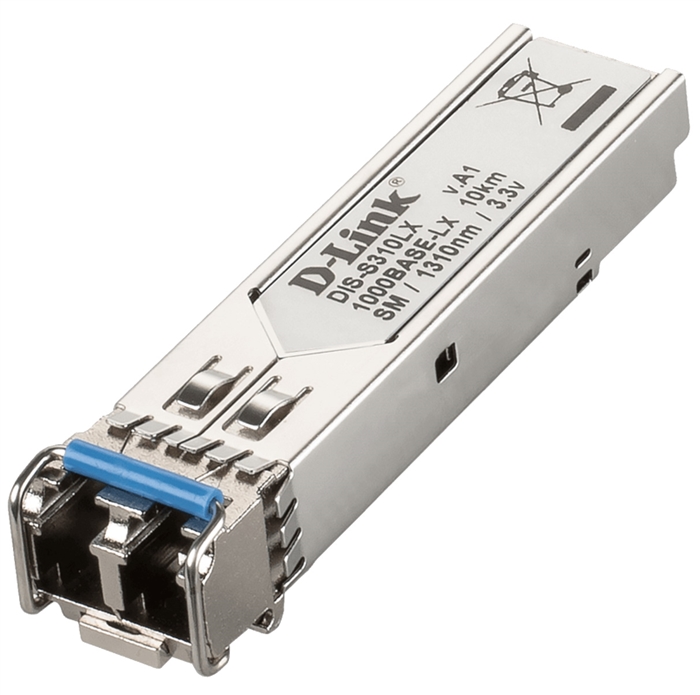

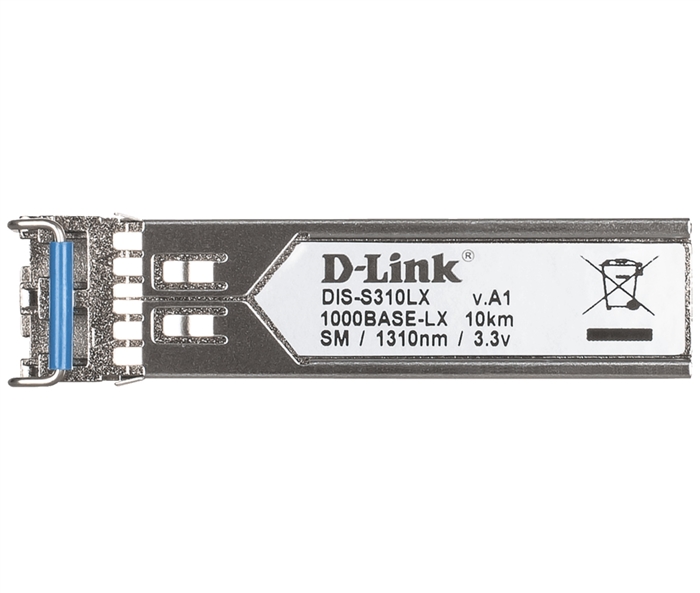

D-Link DIS-S310LX 1-Port Mini-GBIC SFP to 1000BaseLX Single-Mode 10km Fiber Transceiver

D-Link’s Industrial SFP Optical Transceivers are hot-swappable SFP transceivers that are specifically designed for D-Link Industrial Ethernet switches. The transceivers offer customers a wide variety of connection distance for factory automation, smart and connected city applications, and have a broad operating temperature range of -40 ~ 85°C.

All the transceivers are standard-based and hot swappable. You can remove or replace the transceiver with the system powered on. This allows transceivers to be added or swapped without downtime or interrupting the network.

Features

• Maximum distance of up to 10 km
• Hot-pluggable
• Single-mode fiber
• 1000BASE-LX (IEEE 802.3z standard)
• Duplex LC connector
• MSA, RoHS-compliant
• -40 ~ 85°C operating temperature

Specifications

• EMI: FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B
• Safety: FDA/CDRH, TUV, cUL
• Hot Pluggable: Yes
• RoHS Compliant: Yes
• MSA Compliant: Yes
• connector: Duplex LC Connector
• single/bi Direction: single-direction
• Wavelength: 1310 nm
• Cable Type: - single-mode 9/125um fiber: reach 10km
• Power: 3.3V
• Operation Temperature: -40°C to +85°C
• Dimension ( W x D x H ): 13.4mm x 56.4mm x 10.35mm
• Speed: 1Gbps
• Compliant Standard: IEEE-802.3z 1000BASE-LX
• Transceiver Type: SFP
• Fiber Channel FC-PI standard: 100-SM-LC-L
• Fiber Media support: Single-Mode
• Distance: 10KM
