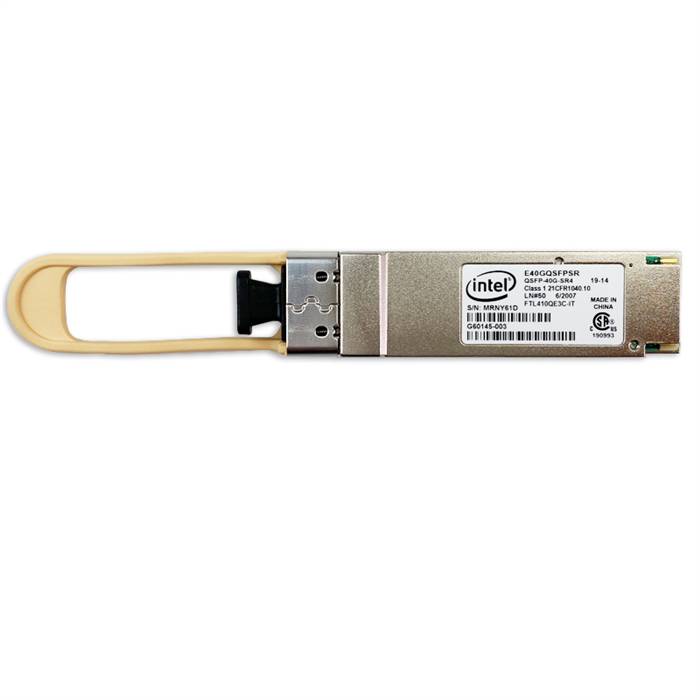

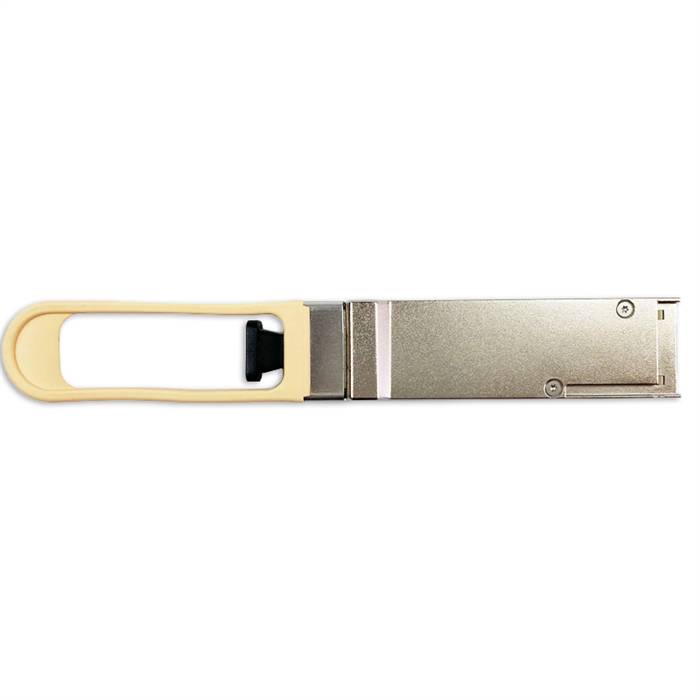

Intel Ethernet QSFP+ Optical Transceiver Module, 40GBASE-SR4, 40GbE or 4x10GbE
Genuine HPE AJ833A

Alternative Views:


Our Price: $60.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: E40GQSFPSR
Qty:

Description

Intel Ethernet QSFP+ Optics offer customers an efficient way to move to 40GbE for high bandwidth application requirements such as content distribution, high-end virtualization using multiple CPUs, network appliances, and Applications Delivery Controllers (ACD). When used with the Intel Ethernet Network Adapter XL710, these optics support either 40GbE or 4x10GbE mode for four 10GBASE-SR or 10GBASE-LR optical interfaces.

To ensure maximum flexibility, Intel supports the ability to use either Intel Ethernet QSFP+ Optics or direct attach twinaxial cables. This helps customers create the configuration that best meets the needs of their data center environment, while ensuring compatibility between adapter and accessories.

Key Features
  • Support for 40GBASE Ethernet
  • Hot-swappable 40GbE I/O transceiver that plugs into a QSFP+ port
  • Supports the 4x10 GbE mode to connect to four 10GBASE-SR or 10GBASE-LR optical interfaces
  • Four channel, full duplex transceiver module
  • Single MPO receptacle (SR)
  • Single LC receptacle (LR)
  • Maximum power dissipation < 1.5 W SR4; < 3.5 W LR4
  • RoHS-6 compliant (lead-free)
  • Commercial temperature range 0-70 °C
  • Maximum link length 10 km on Single Mode Fiber (SMF)
  • Maximum link length 100 m on Multimode Fiber (MMF)
  • 1.06 Gb/s to 10.5 Gb/s per channel multi-rate capability
  • Compatible with Intel Ethernet Network Adapters
Specifications
  • Product Code: E40GQSFPSR
  • Module Form Factor: QSFP+
  • Network Standards Physical Layer Interface: 40GBASE-SR4
  • QSFP+ Module Specifications
    • INF-8438i Specification for QSFP (Quad Small Form factor Pluggable) Transceiver
    • SFF-8436 – Specification for QSFP+ Copper and Optical Transceiver
    • IEEE 802.3ba – PMD Type 40GBASE-SR4
  • Number of Lanes: 4 Tx and 4 Rx
  • Airflow and Temperature Guidelines: Refer to adapter product brief for specific airflow and temperature requirements
  • Transmission rate: 40GbE
  • Connector type: MPO
  • Optical fiber type: MMF
  • Transmission distance: 100m @ OM4 MMF
  • Working case temperature: 0°C to 70°C
