Improve application efficiency and network performance with innovative and versatile capabilities that optimize high-performance server workloads such as NFV, storage, HPC-AI and hybrid cloud. E810-CQDA1 and E810-CQDA2 adapters support a wide range of system configurations to meet customer needs and workload requirements. The many port and speed combinations available simplify validation and deployment.

Essentials

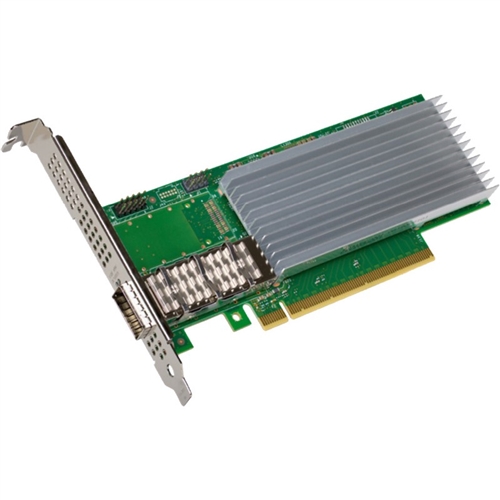

• Product P/N: E810-CQDA1
• Product Collection: 800 Series Network Adapters (up to 100GbE)
• Status: Launched
• Launch Date: Q4'20
• Vertical Segment: Server
• Cabling Type: QSFP28 port - DAC, Optics, and AOC's
• Bracket Height: Low Profile and Full Height
• Product Order Code: E810CQDA1, E810CQDA1BLK
• Dimension: 167 mm x 69 mm
• RoHS-compliant: Product is compliant with EU RoHS Directive 2 2011/65/EU (Directive 2011/65/EU) and its amendments (e.g. 2015/863/EU)

Networking Specifications

• Port Configuration: Single
• Data Rate Per Port: 100/50/25/10/1GbE
• Intel® Virtualization Technology for Connectivity (VT-c): Yes
• Speed & Slot Width: 16 GT/s x 16 lanes
• Controller: Intel Ethernet Controller E810 E810-CAM1

Package Specifications

• System Interface Type: PCIe 4.0 x16(16 GT/s)

Intel® Virtualization Technology for Connectivity

• On-chip QoS and Traffic Management: Yes
• Flexible Port Partitioning: Yes
• Virtual Machine Device Queues (VMDq): Yes
• PCI-SIG* SR-IOV Capable: Yes

Advanced Technologies

• iWARP/RDMA: Yes
• RoCEv2/RDMA: Yes
• Intel® Data Direct I/O Technology: Yes
• Intelligent Offloads: Yes
• Storage Over Ethernet: iSCSI, NFS

Key Features

• Single and Dual-Port QSFP28
• Application Device Queues (ADQ)
• PCI Express (PCIe) 4.0 x16
• Dynamic Device Personalization (DDP)
• Ethernet Port Configuration Tool (EPCT)
• Supports both RDMA iWARP and RoCEv2
