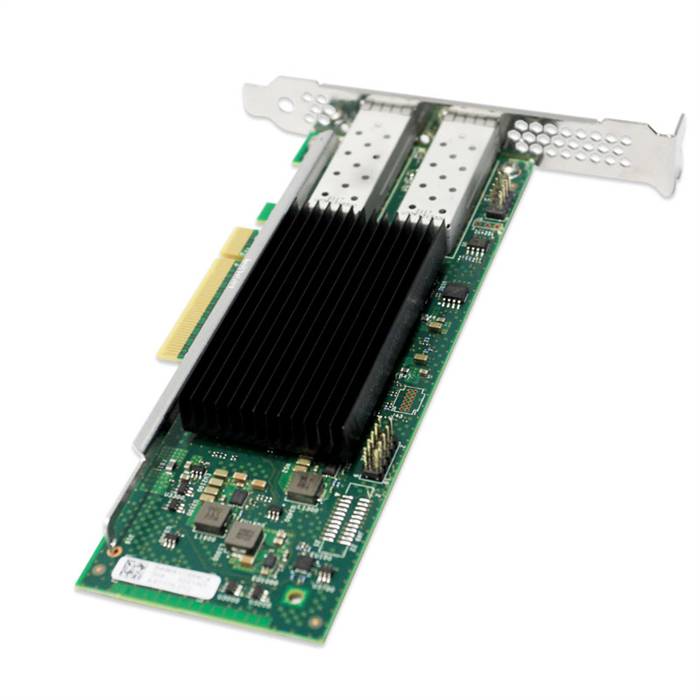

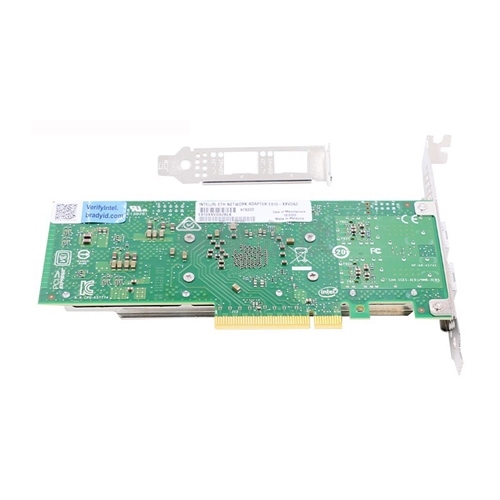

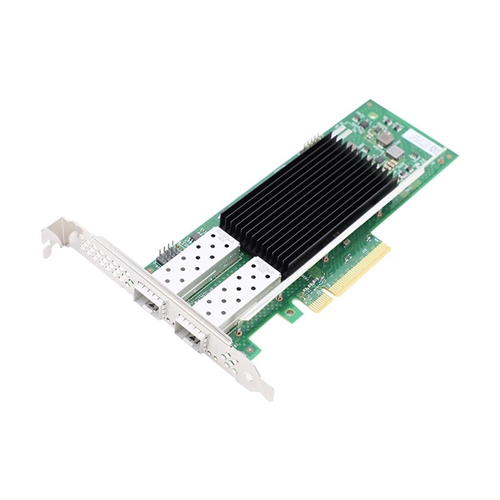

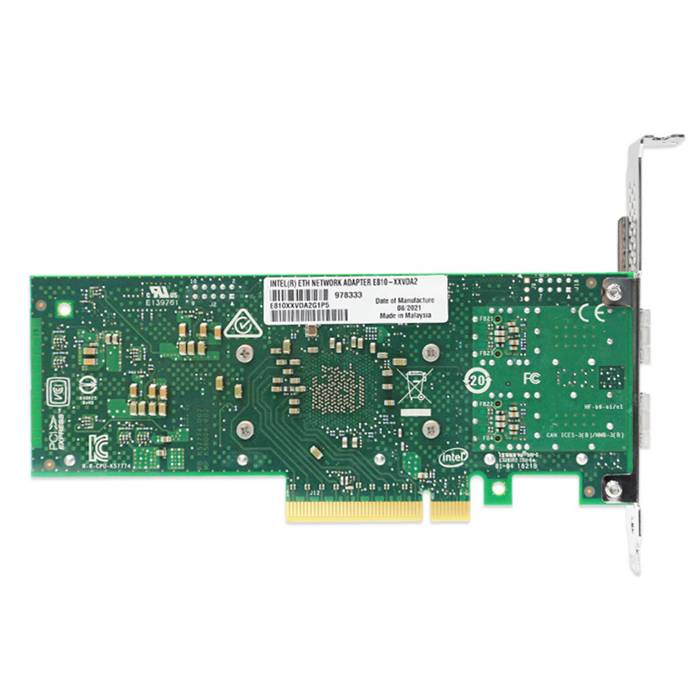

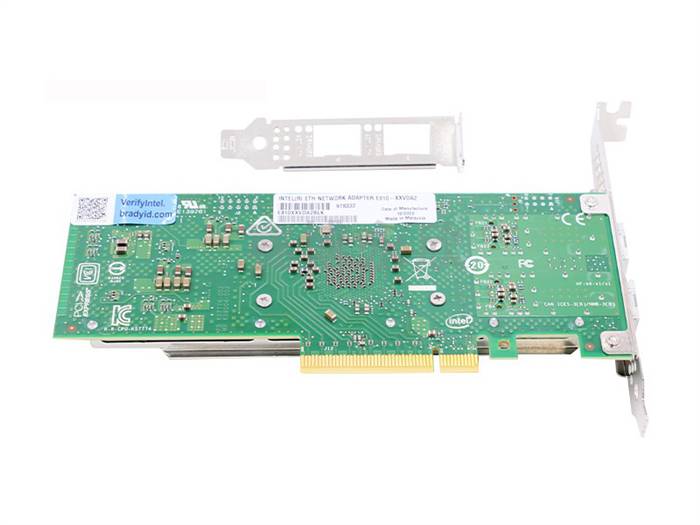

Intel E810 25GbE Dual SFP28 Port Ethernet Network Adapter

Alternative Views:

Our Price: $575.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days
Brand: Intel
Condition: New Factory Sealed

Product Code: E810-XXVDA2

Qty:

Description

Intel® Ethernet 800 Series network adapters improve application efficiency and network performance with innovative and versatile capabilities. With two 25GbE SFP28 ports and key performance optimizations, the E810-XXVDA2 supports solutions across Cloud, Enterprise, and Communications.

Intel Ethernet Optics and Active Optic Cables (AOCs) support multiple configurations and are fully compatible with the Intel Ethernet Network Adapter E810-XXVDA2.

Essentials

Product P/N: E810-XXVDA2
Product Collection: 800 Series Network Adapters (up to 100GbE)
Status: Launched
Launch Date: Q3'20
Vertical Segment: Server
Cable Medium: Copper
Cabling Type: SFP28 ports - DAC, Optics, and AOC's
Bracket Height: Low Profile and Full Height
Product Order Code: E810XXVDA2, E810XXVDA2BLK
Dimension: 6.57 in x 2.67 in (167 mm x 68 mm)
RoHS-compliant: Product is compliant with EU RoHS Directive 2 2011/65/EU (Directive 2011/65/EU) and its amendments (e.g. 2015/863/EU)

Networking Specifications

Port Configuration: Dual
Data Rate Per Port: 25/10/1GbE
Intel® Virtualization Technology for Connectivity (VT-c): Yes
Speed & Slot Width: 16 GT/s x8 lanes
Controller: Intel Ethernet Controller E810

Package Specifications

System Interface Type: PCIe 4.0 (16 GT/s)

Intel® Virtualization Technology for Connectivity

On-chip QoS and Traffic Management: Yes
Flexible Port Partitioning: Yes
Virtual Machine Device Queues (VMDq): Yes
PCI-SIG* SR-IOV Capable: Yes

Advanced Technologies

iWARP/RDMA: Yes
RoCEv2/RDMA: Yes
Intel® Data Direct I/O Technology: Yes
Intelligent Offloads: Yes
Storage Over Ethernet: iSCSI, NFS

Key Features

Dual Port SFP28
Dynamic Device Personalization (DDP)
PCI Express (PCIe) 4.0 x8
Supports both RDMA iWARP and RoCEv2
Application Device Queues (ADQ)
IEEE 1588 Precision Time Protocol (PTP)
