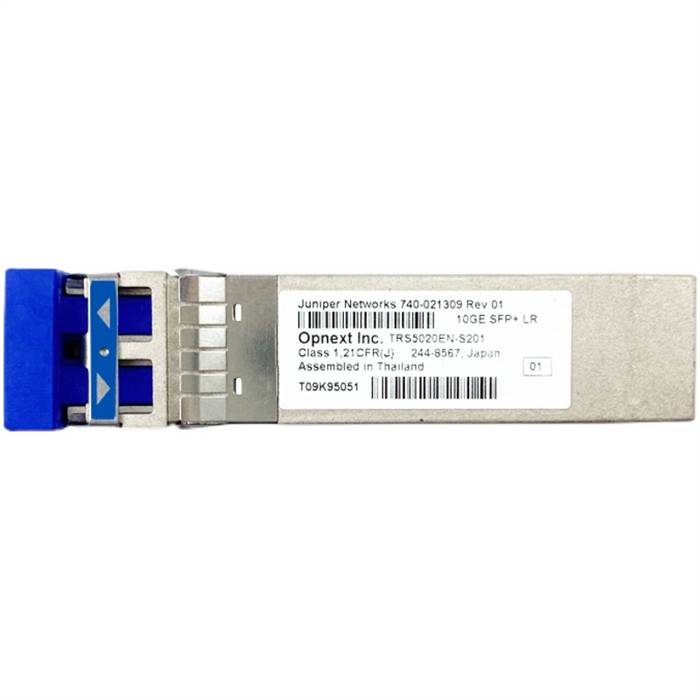

Juniper Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) LR Optics, 740-021309
Genuine HPE QK733A

Our Price: $140.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: EX-SFP-10GE-LR
Qty:

Description

Overview & Specifications
  • Product Number: EX-SFP-10GE-LR
  • Product Name: Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) LR Optics
  • Part Number: 740-021309
  • Speed: 10 Gigabit Ethernet
  • Transceiver Type: SFP+
  • Product Type: Optical Transceiver
  • Connector: Duplex LC
  • Monitoring Available: Yes
  • Digital Optical Monitoring: Yes
  • Standard: 10GBASE-LR
  • Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4): 10GBASE-LR
  • MSA compliance (SFF, for e.g. SFF-8665)
    • SFF-8431
    • SFF-8472
    • SFF-8432
  • Digital Diagnostic Monitoring
    • Transceiver Temperature
    • Transceiver Supply Voltage
    • Tx Bias Current
    • Tx output power
    • Rx received optical power
  • NEBs (Yes or No): No
  • Signaling rate, each lane: 10 Gbps
  • Transmitter fibers: Dual
  • Transmitter wavelengths (range): 1260 nm to 1355 nm
  • Receive lane wavelengths (range): 1260 nm to 1355 nm
  • Transmitter output power, each lane (minimum): -8.2 dBm
  • Transmitter output power, each lane (maximum): 0.5 dBm
  • Receiver input power, each lane (minimum): –14.4 dBm
  • Receiver input power, each lane (maximum): 0.5 dBm
  • Receiver sensitivity (OMA), each lane (maximum): -12.6 dBm
  • Stressed receiver sensitivity (OMA) each lane (maximum): -10.3 dBm
  • Cable type: SMF
  • Core size/cladding: 9/125 µm
  • Effective modal bandwidth: —
  • Distance: 10 km
  • Operating Temperature (range): 0° C to 70° C
  • Storage temperature: –40° C to 85° C
  • Typical Weight & Dimensions
    • Width: 14 mm
    • Height: 12.05 mm
    • Length: 57.5 mm
    • Weight: 0.15 lb

10GBASE-LR Fiber Cabling & Distance Specifications
Cable Type Core Size Wavelength Modal Bandwidth Max Distance
SMF (OS1/OS2) 9/125 µm 1310 nm N/A (Laser) 10 km

Important: 10GBASE-LR is strictly for Single-Mode Fiber (SMF). It is not compatible with Multi-Mode Fiber (OM1/OM2/OM3/OM4) without specialized mode-conditioning equipment and will suffer from extreme signal loss.
