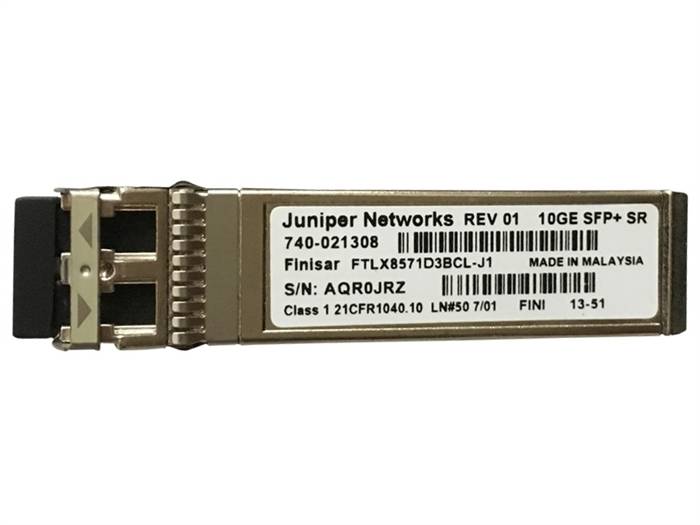

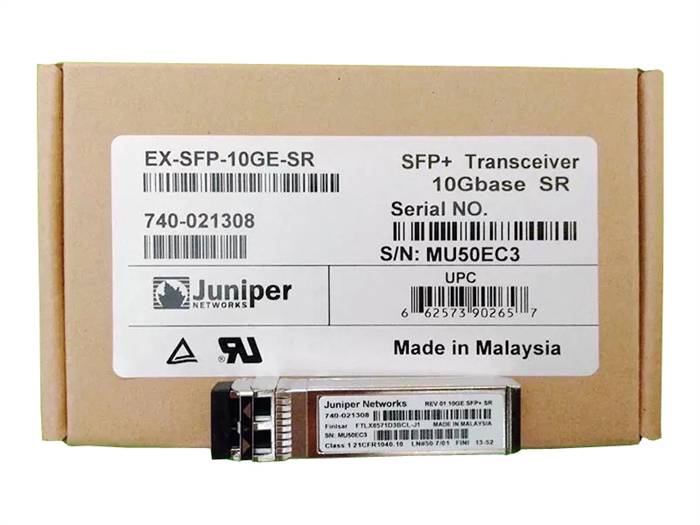

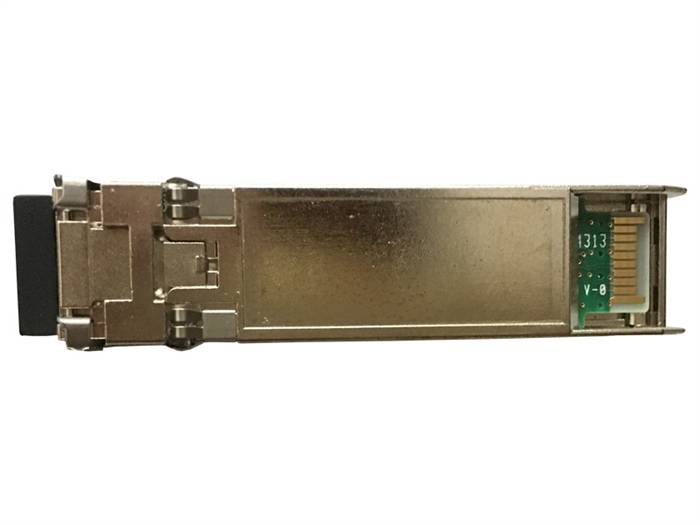

Juniper Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) SR Optics, 740-021308
Genuine HPE QK732A

Alternative Views:
Our Price: $100.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: EX-SFP-10GE-SR
Qty:

Description


Overview & Specifications

  • Product Number: EX-SFP-10GE-SR
  • Product Name: Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) SR Optics
  • Part Number: 740-021308
  • Speed: 10 Gigabit Ethernet
  • Transceiver Type: SFP+
  • Product Type: Optical Transceiver
  • Connector: Duplex LC
  • Monitoring Available: Yes
  • Digital Optical Monitoring: Yes
  • Standard: 10GBASE-SR
  • Digital Diagnostic Monitoring
    • Transceiver temperature
    • Transceiver supply voltage
    • TX bias current
    • TX output power
    • RX received optical power
  • Signaling rate, each lane: 10 Gbps
  • Transmitter fibers: Dual
  • Transmitter wavelengths (range): 850 nm
  • Transmitter output power, each lane (minimum): –7.3 dBm
  • Transmitter output power, each lane (maximum): –1 dBm
  • Receiver input power, each lane (minimum): –9.9 dBm
  • Receiver input power, each lane (maximum): -1 dBm
  • Operating Temperature (range): 0° C to 70° C
  • Storage temperature: –40° C to 85° C

10G Fiber Cabling & Distance Specifications (Complete)
Cable Type Fiber Grade Modal Bandwidth Max Distance (10G)
MMF (50/125µm) OM2 500 MHz · km 82 m
MMF (50/125µm) OM3 2000 MHz · km 300 m
MMF (50/125µm) OM4 4700 MHz · km 400 m
MMF (50/125µm) OM5 4700 MHz · km 440 m
