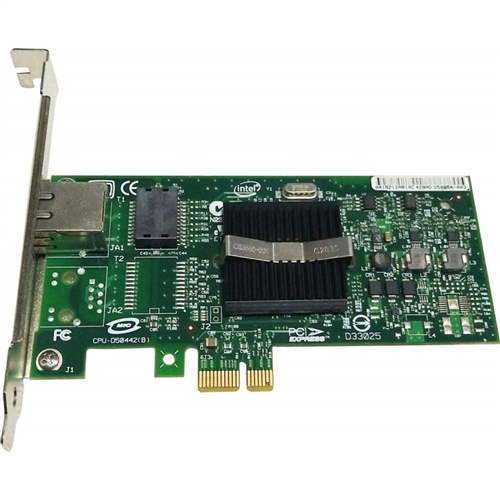

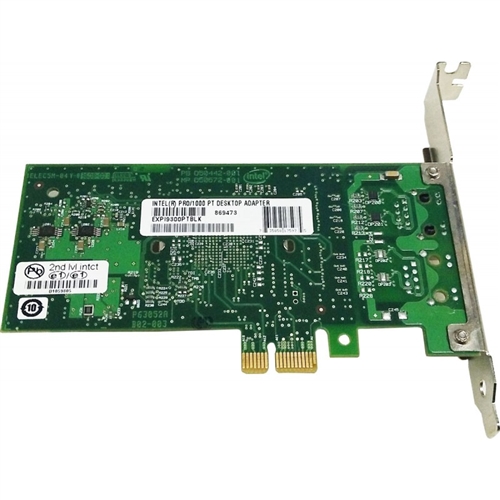

For PCs with PCI Express (PCIe*) slots, the Intel PRO/1000 PT Desktop Adapter offers the newest technology for maximizing system performance and increasing end-user productivity. Specifically, the Intel PRO/1000 PT Desktop Adapter uses auto-negotiation to allow the adapter to run at the highest available network speed (10, 100 or 1000 Mbps), and it maintains full bandwidth capacity with the dedicated 2.5-Gbps bandwidth of a PCI Express input/output (I/O) bus to provide connectivity you can count on.
Features - Intel 82572EI Gigabit Controller
- Interrupt moderation
- PCI Express* x1 slot compatible
- Compatible with Fast Ethernet and Ethernet
- 10/100/1000 Mbps self-configuring
- Support for most network operating systems (NOS)
- Category-5 unshielded twisted pair (UTP), 4-pair cabling
- RoHS compliant, lead-free technology
- Advanced configuration and power interface (ACPI), Wake on LAN* (WoL), Preboot Execution Environment (PXE)
- Remote management support
- Intel PROSet Utility for Windows
- Advanced cable diagnostics
- Intel backing
Specifications - Product Name: Intel PRO/1000 PT Desktop Adapter
- Product Code: EXPI9300PT
- Connectors: RJ-45
- IEEE standards/network topology: 10/100/1000BASE-T
- Wiring: Category-5 UTP, 4-pair
- Cable Distance: 100 m Category-5 for 1000/100 Mbps; Category-3 for 10 Mbps
- Data rate(s) supported per port: 10, 100, and 1000 Mbps
- Bus type: PCI Express 1.0a
- Bus width: x1 lane PCI Express operable in x1, x4, x8, x16 slots
- Bus speed (x1, encoded rate): 2.5 Gbps uni-directional; 5 Gbps bi-directional
- EEPROM-SPI and single EEPROM support: Yes
- Interrupt levels: INTA
- IEEE support: 802.3z*
- Hardware certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
- Controller-processor: Intel 82572EI
- Typical power consumption: 3.3 W (3.3 V @ 1 A)
- Operating temperature: 0-55° C
- LEDs: 2 (1/port, link and speed) solid and blinking
Physical Dimensions - Length: 12.9 cm (5.1 in)
- Width (standard bracket): 2.2 cm (0.85 in)
- Width (low-profile bracket): 1.8 cm (0.725 in)
- Height of full-height end bracket: 12.0 cm (4.725 in)
- Height of low-profile end bracket: 7.9 cm (3.1 in)
Network Operating Systems (NOS) Software Support - Microsoft Windows* Professional, XP, 2000
- Red Hat Linux* 2.4x or later (32- and 64-bit)
- Novell Netware* 5.x, 6.x
|
|
|
 |
|
 |
|
