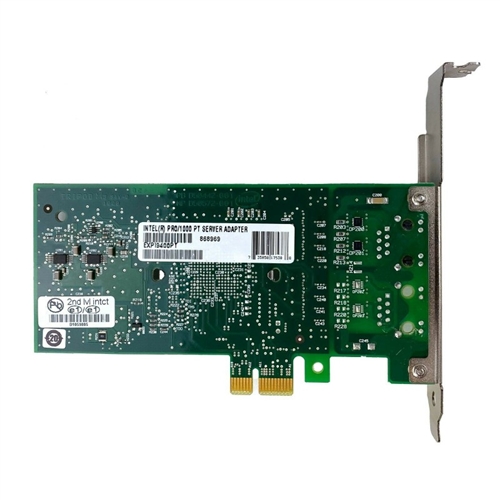

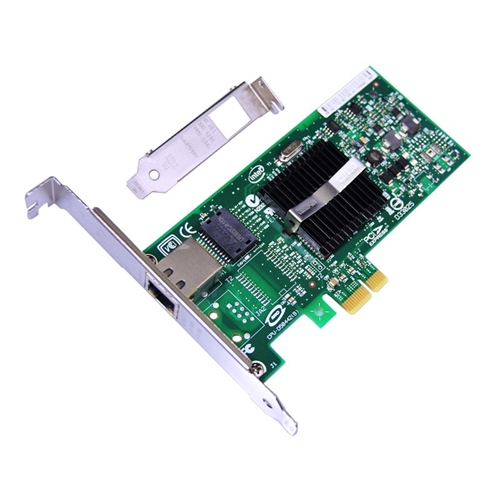

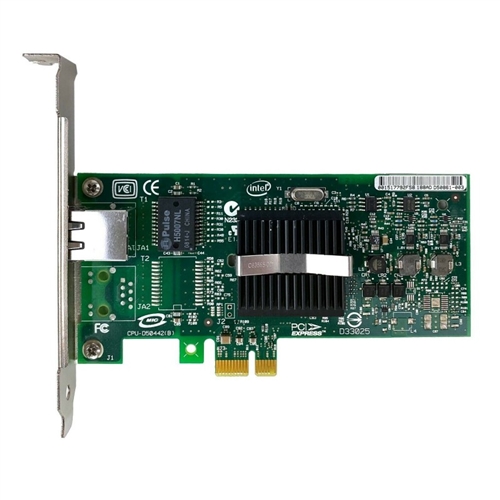

The Intel PRO/1000 PT Server Adapter represents the fifth generation of Intel network adapters for Gigabit Ethernet, and features 10/100/1000 Mbps self-configuration for compatibility with mixedspeed network devices. For easy installation and management, all Intel PRO Network Connections are supported by Intel PRO Intelligent Install and the new Intel PROSet Utility for Microsoft Device Manager. Intel PROSet simplifies adapter installation and gives you point-and-click power to configure and manage all your Intel PRO Network Connections for connectivity you can count on.
Features - Intel 82572GI Gigabit Controller
- Load balancing on multiple CPUs
- Interrupt moderation
- Compatible with x1, x4, x8, and x16 full-height and low-profile PCI Express* slots
- Support for most network operating systems (NOS)
- Remote Management Support
- Category-5 unshielded twisted pair (UTP), 4-pair cabling
- RoHS compliant, lead-free technology
- Intel PROSet Utility for Microsoft* Device Manager
- Advanced cable diagnostics
- Intel backing
Specifications - Product Name: Intel PRO/1000 PT Server Adapter
- Product Code: EXPI9400PT
- Connectors: RJ-45
- IEEE standards/network topology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Wiring: Category-5, UTP, 4-pair
- Cable distance: 100 m in Category-5 for 100/1000 Mbps; Category-3 for 10 Mbps
- Data rate(s) supporter per port: 10, 100, and 1000 Mbps
- Bus type: PCI Express 1.0a
- Bus width: x1 Lane PCI Express, operable in x1, x4,x8, x16 slots
- Bus speed (x1, encoded rate): 2.5 Gbps uni-directional; 5 Gbps bi-directional
- EEPROM-SPI and single EEPROM support: Yes
- Interrupt levels: INTA
- IEEE support: 802.3ab*
- Hardware certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
- Controller-processor: Intel® 82572GI
- Typical power consumption: 3.3 W (3.3 V @ 1 A)
- Operating temperature: 0-55° C
- LEDs: 1 (1/port, link and speed) solid and blinking
Physical Dimensions - Length: 12.9 cm (5.1 in)
- Width (standard bracket): 2.2 cm (0.85 in)
- Width (low-profile bracket): 1.8 cm (0.725 in)
- Height of full-height end bracket: 12.0 cm (4.725 in)
- Height of low-profile end bracket: 7.9 cm (3.1 in)
Network Operating Systems (NOS) Software Support - Microsoft Windows* Server 2003, Enterprise, Datacenter (32- & 64-bit)
- Microsoft Windows 2000
- Red Hat Linux* 2.4x or later (32- and 64-bit)
- FreeBSD 4.x or later
- Novell Netware* 5.x, 6.x
- Sun Solaris* x86, OS 8 and later
- SCO Open Server 5, OpenUNIX 8
|
|
|
 |
|
 |
|
