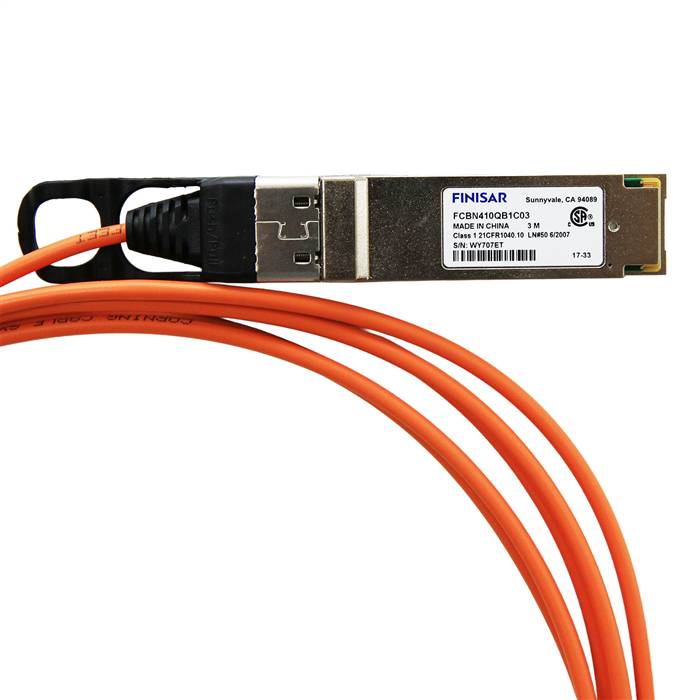

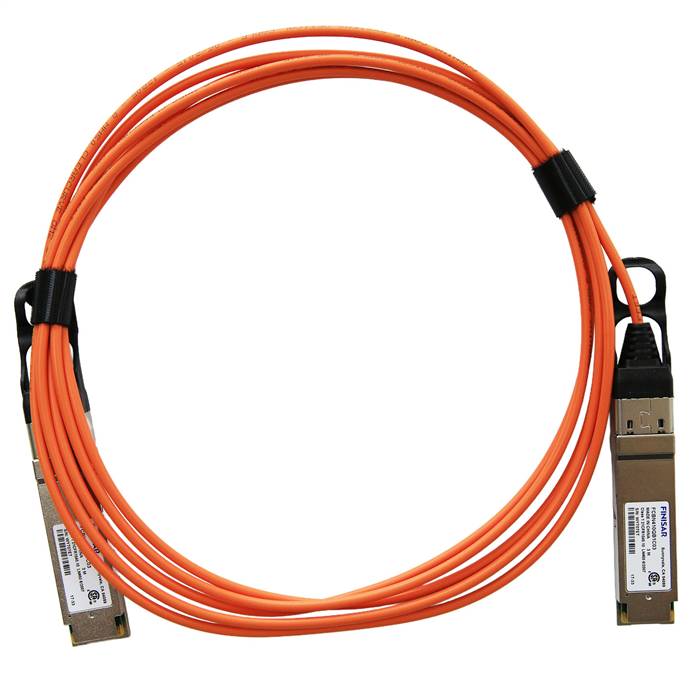

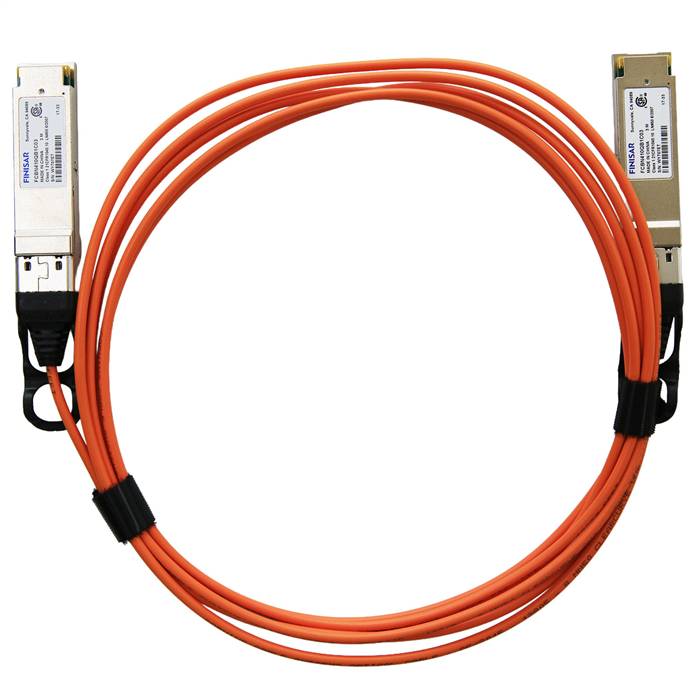

Finisar FCBN410QB1C03 Quadwire 40 Gb/s Parallel Active Optical Cable, 3-meter

Features

• Four-channel full-duplex active optical cable
• Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
• Complies with QSFP MSA high-density form factor
• Round, plenum-rated cable
• Reliable VCSEL array technology using multimode fiber
• Hot Pluggable
• Low power dissipation: <1.3W per cable end
• Commercial operating case temperature range: 0ºC to 70ºC
• RoHS-6 Compliant

Applications

• Infiniband QDR
• 40G Ethernet
• 4G/8G/10G Fibre Channel
• HPC Interconnections
• SATA/SAS3
• PCIe3

Specifications

• Part Number: FCBN410QB1C03
• Cable Length: 3 meters
• Module Form Factor: QSFP
• Number of Lanes: 4 Tx and 4 Rx
• Maximum Aggregate Data Rate: 42.0Gb/s
• Maximum Data Rate per Lane: 10.5Gb/s
• Protocols Supported: Typical applications include Infiniband, Fibre Channel, 40G Ethernet, SATA/SAS3
• Electrical Interface and Pin-out: 38-pin edge connector
• Maximum Power Consumption per End: 1.3 Watts
• Management Interface: Serial, I2C-based, 400 kHz maximum frequency
