Genuine Finisar FTCD8613E1PCM

Home > OEM > Finisar >

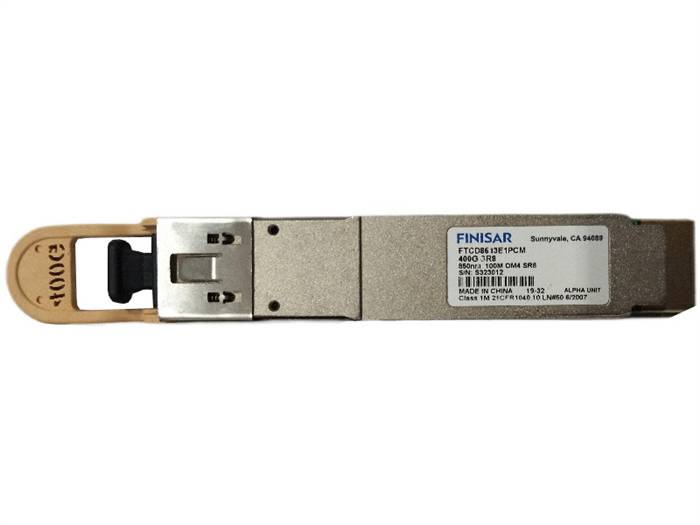

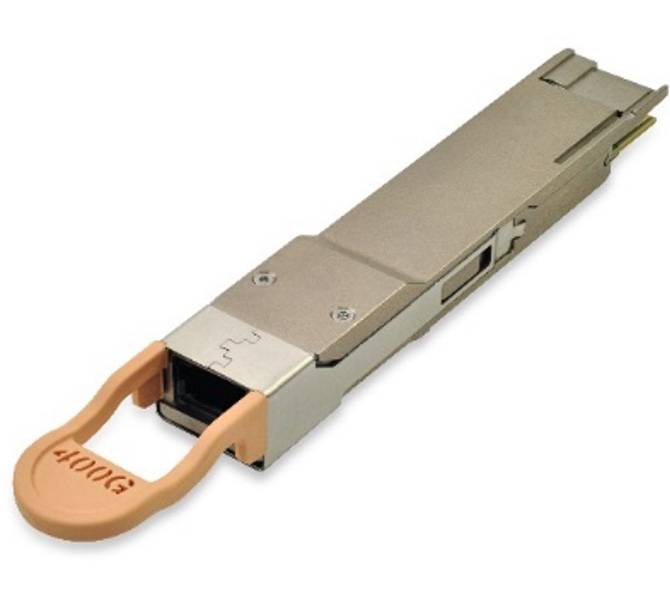

Finisar FTCD8613E1PCM 400GBASE-SR8 QSFP-DD Optical Transceiver

Alternative Views:

Our Price: $600.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: FTCD8613E1PCM

Qty:

Description

FTCD8613E1PCM QSFP-DD SR8 transceiver modules are designed for use in Gigabit Ethernet links on up to 70m on OM3 MMF or 100m on OM4 MMF. They are compliant with the QSFP-DD MSA and portions of IEEE P802.3bs. Digital diagnostic functions are available via the I2C interface, as defined by the CMIS 4.0. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features

Hot-pluggable QSFP-DD form factor
Power dissipation <10W
RoHS compliant
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 100m on OM4 fiber with KP4 FEC
8x50G PAM4 VCSEL transmitter
8x50G PAM4 retimed 400GAUI-8 electrical interface aligned with IEEE 802.3bs
MPO-16 APC connector
I2C management interface

Applications

400G 100m on OM4 with FEC

Specifications

Distance: 100 m
Data Rate (max): 425 Gb/s
Protocol: 400G Ethernet Compliant
Low End Case Temperature (°C): 0
High End Case Temperature (°C): 70
Diagnostics: Digital
Transmitter: 8x PAM4 VCSEL
Receiver: PIN
Voltage Supply: 3.3
Connector: MPO-16 APC
Wavelength: 850nm Band
