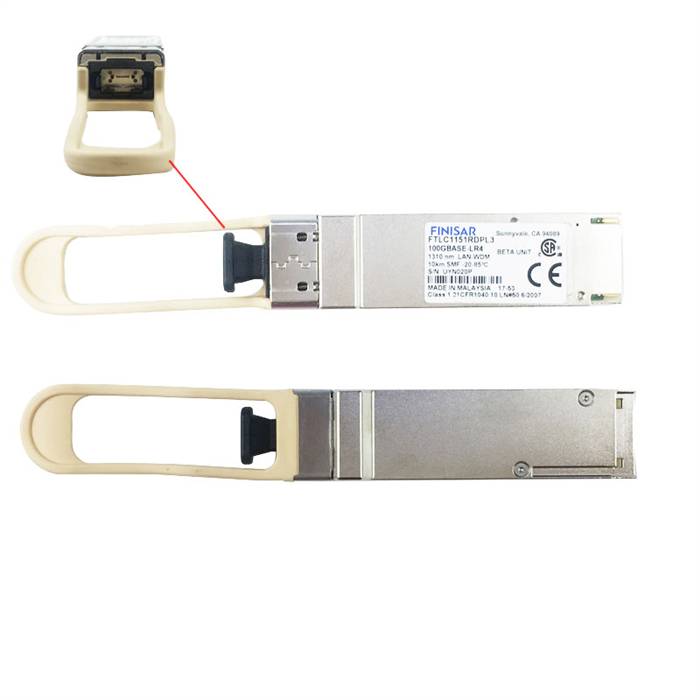

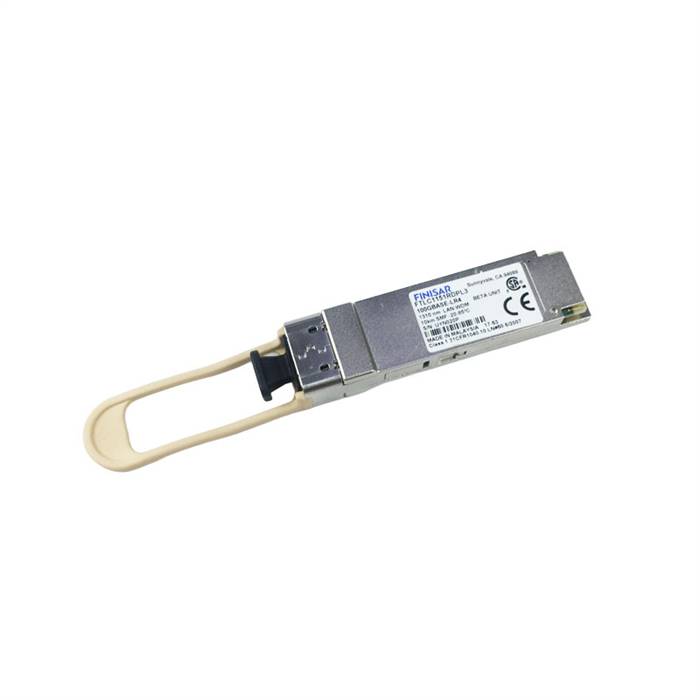

II-VI Finisar 100GBase-LR4 1310nm LAN-WDM SMF 10km QSFP28 Optical Transceiver
II-VI Finisar FTCL1151RDPL3

Alternative Views:
Our Price: $1,630.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTCL1151RDPL3
Qty:

Description

II-VI Finisar FTCL1151RDPL3 QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 10km of single mode fiber. Designed for outside plant applications with an extended temperature range (-20°C to +85°C), they are compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Application Notes AN-2152 and AN-2153. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features
  • Hot-pluggable QSFP28 form factor
  • Supports 103.1Gb/s aggregate bit rate
  • Power dissipation <4.5W
  • RoHS-6 compliant
  • Etended case temperature range of -20°C to 85°C
  • Adaptive CTLE
  • Single 3.3V power supply
  • Maximum link length of 10km on Single Mode Fiber (SMF)
  • 4x25Gb/s DFB-based LAN-WDM transmitter
  • 4x25G retimed electrical interface
  • Duplex LC receptacles
  • I2C management interface

Applications
  • 100GBASE-LR4 100G Ethernet
  • Outside Plant
  • Reduced Air Flow Central Office

FTCL1151RDPL3
  • 1: Gen 1
  • R: 100GE-LR4 maximum bit rate (103.1 Gb/s)
  • D: 4x25G LAN-WDM optical architecture
  • P: Pull-tab release
  • L: LC straight receptacles
  • 3: Extended temperature range

Specifications
  • Data Rate (max): 103.1 Gb/s
  • Connector: LC
  • Wavelength: 1310nm Band
  • Distance: 10km
  • Diagnostics: Digital
  • Transmitter: 4x LWDM DFB Laser
  • Receiver: PIN
  • Voltage Supply: 3.3V
  • Low End Case Temperature: -20°C
  • High End Case Temperature: +85°C
  • Protocol: 100G Ethernet Compliant
