Home > OEM > Finisar >

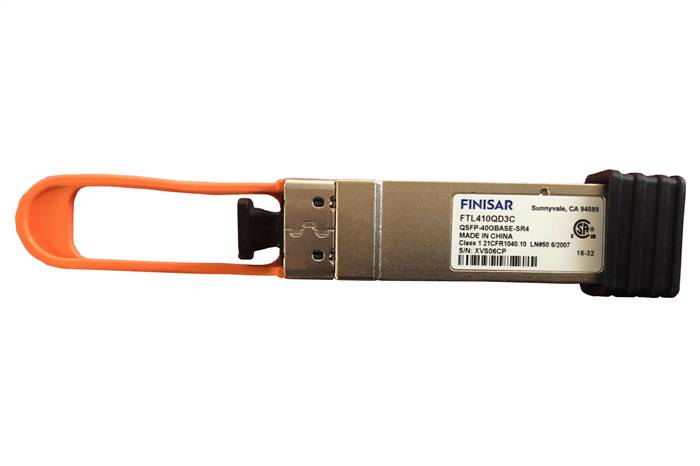

Finisar FTL410QD3C 40GBASE-SR4/10GBASE-SR 300m Gen3 QSFP+ Optical Transceiver
Genuine Finisar FTL410QD3C

Our Price: $650.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTL410QD3C
Qty:

Description

FTL410QD3C QSFP+ optical transceiver modules are designed for use in 40 Gigabit per second links over parallel multimode fiber, including breakout to four 10 Gigabit per second links. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and compatible with IEEE 802.3ba 10GBASE-SR. The Gen 3 variant has built-in real-time digital diagnostic functions, including Tx and Rx powering monitoring. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features
  • Four-channel full-duplex transceiver module
  • Hot-pluggable QSFP+ form factor
  • Maximum link length of 300m on OM3 Multimode Fiber (MMF) and 400m on OM4 MMF
  • Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
  • Unretimed XLPPI electrical interface
  • Maximum power dissipation < 1.2W
  • Reliable VCSEL array technology
  • Real-time digital diagnostic functions, including Tx and Rx power monitoring
  • Commercial operating case temperature range 0°C to 70°C
  • Single 1×12 MPO receptacle
  • RoHS compliant

Applications
  • 40GBASE-SR4 40G Ethernet
  • Breakout to 10GBASE-SR Ethernet
  • Proprietary interconnections

Specifications
  • Distance: 300 m
  • Data Rate (max): 41.2 Gb/s
  • Protocol: 10x Fibre Channel Compliant 40G Ethernet Compliant IB QDR Compatible
  • Low End Case Temperature (°C): 0
  • High End Case Temperature (°C): 70
  • Diagnostics: Digital
  • Transmitter: 4x VCSEL
  • Receiver: PIN
  • Voltage Supply: 3.3
  • Connector: MPO (MTP12)
  • Wavelength: 850nm Band
