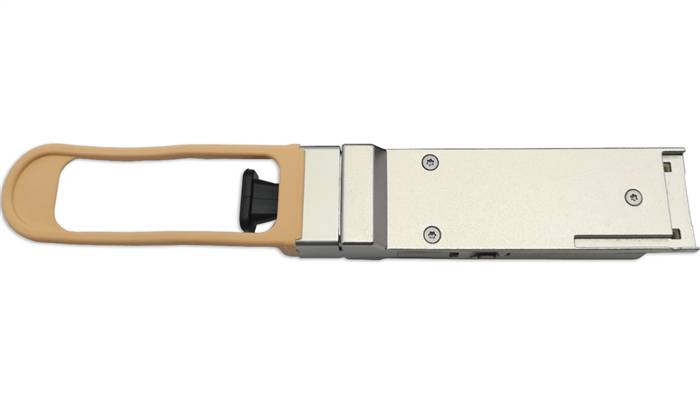

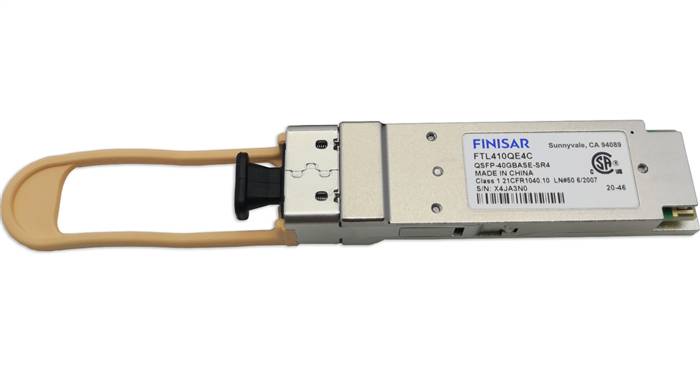

Finisar FTL410QE4C 40GBASE-SR4 150m Gen4 QSFP+ Optical Transceiver

Alternative Views:

Our Price: $200.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: FTL410QE4C

Qty:

Description

FTL410QE4C QSFP+ optical transceivers are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and breakout to four 10GBASE-SR. Digital diagnostics functions are available via an I2C interface, including Tx and Rx power monitoring. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features

Four-channel full-duplex transceiver module
Hot-pluggable QSFP+ form factor
Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
Unretimed XLPPI electrical interface
Maximum power dissipation < 1W
Reliable VCSEL array technology
Built-in digital diagnostic functions, including optical power monitoring
Commercial temperature range 0°C to 70°C
Single 1×12 MPO receptacle
RoHS compliant

Applications

Breakout to 4 x 10GBASE-SR Ethernet
Proprietary interconnections

Specifications

Distance: 150 m
Data Rate (max): 41.2 Gb/s
Protocol: 10x Fibre Channel Compatible 40G Ethernet Compliant IB QDR Compatible
Low End Case Temperature (°C): 0
High End Case Temperature (°C): 70
Diagnostics: N/A
Transmitter: 4x VCSEL
Receiver: PIN
Voltage Supply: 3.3
Connector: MPO
Wavelength: 850nm Band
