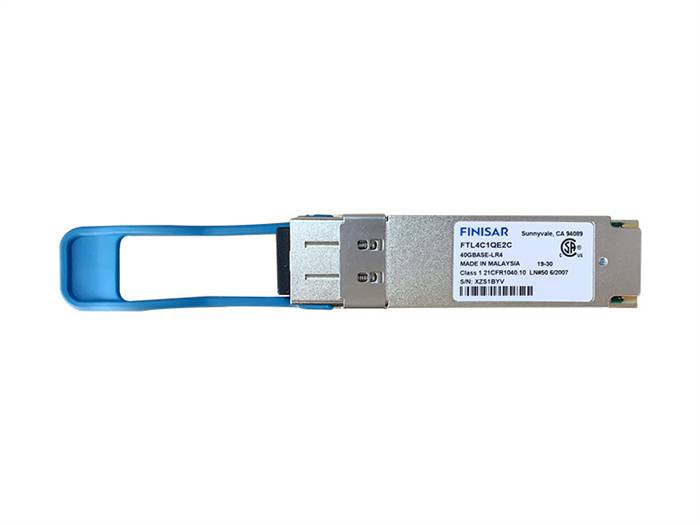

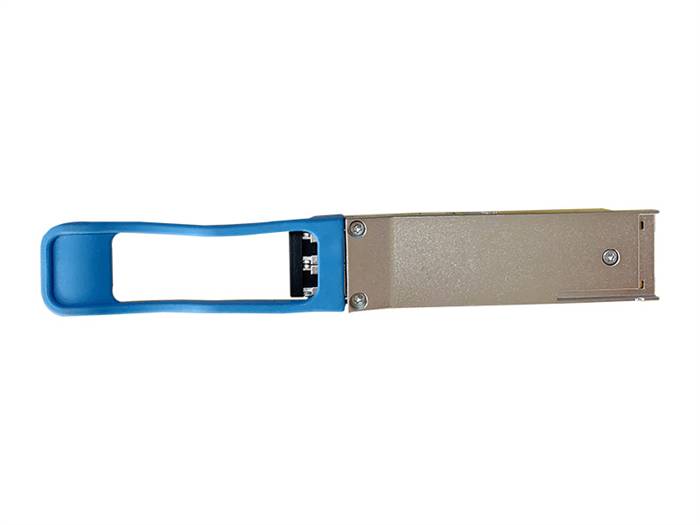

Finisar FTL4C1QE2C 40GBASE-LR4 10km Gen2 QSFP+ Optical Transceiver

Alternative Views:

Our Price: $550.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: FTL4C1QE2C

Qty:

Description

FTL4C1QE2C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features

Hot-pluggable QSFP+ form factor
Supports 41.2 Gb/s aggregate bit rates
Power dissipation < 3.5W
RoHS compliant
Commercial temperature range 0°C to 70°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
Uncooled 4x10Gb/s CWDM transmitter
XLPPI electrical interface
Duplex LC receptacles
Built-in digital diagnostic functions, including Tx/Rx power monitoring

Applications

40GBASE-LR4 40G Ethernet

Specifications

Distance: 10 km
Data Rate (max): 41.2 Gb/s
Protocol: 40G Ethernet Compliant
Low End Case Temperature (°C): 0
High End Case Temperature (°C): 70
Diagnostics: N/A
Transmitter: 4x DFB Laser
Receiver: PIN
Voltage Supply: 3.3
Connector: LC
Wavelength: 1310nm Band
