II-VI Finisar FTL4C1QE3C

Home > OEM > Finisar >

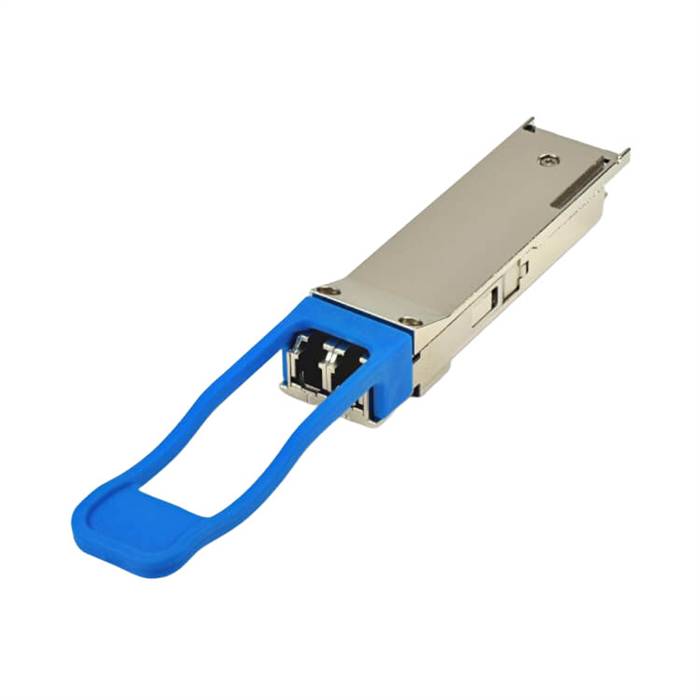

II-VI Finisar 40GBASE-LR4 10km Gen3 QSFP+ Optical Transceiver

Our Price: $780.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: FTL4C1QE3C

Qty:

Description

The II-VI Finisar FTL4C1QE3C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features

Hot-pluggable QSFP+ form factor
Supports 41.2 Gb/s aggregate bit rates
Power dissipation < 3.5W
RoHS-6 compliant
Commercial case temperature range 0°C to 70°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
Uncooled 4x10Gb/s CWDM transmitter
XLPPI electrical interface
Duplex LC receptacles
Built-in digital diagnostic functions, including Tx/Rx power monitoring

Applications

40GBASE-LR4 40G Ethernet

FTL4C1QE3C

E: 40GBASE-LR4 compliant optical interface
1: Third generation product
C: Commercial temperature rate

Specifications

Data Rate (max): 41.2 Gb/s
Connector: Duplex LC
Wavelength: 1310nm Band
Distance: 10km
Diagnostics: Digital
Transmitter: CWDM
Receiver: PIN
Voltage Supply: 3.3V
Low End Case Temperature: 0°C
High End Case Temperature: 70°C
Protocol: 40G Ethernet Compliant
