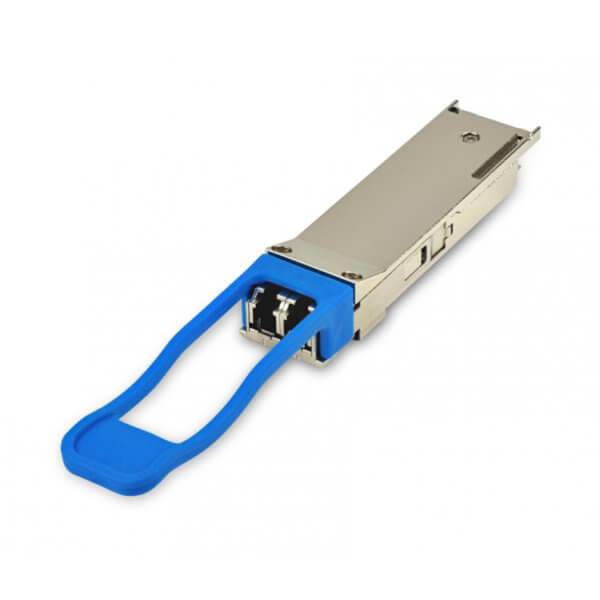

Finisar FTL4C1QM2C 40GBASE-LR4 and OTU3 Multirate 10km Gen2 QSFP+ Optical Transceiver
Genuine Finisar FTL4C1QM2C

Our Price: $1,500.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTL4C1QM2C
Qty:

Description

FTL4C1QM2C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links and 4x10G OTN client interfaces over single mode fiber. They are compliant with the QSFP+ MSA, IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 requirements specified in ITU-T Recommendation G.695. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features
  • Hot-pluggable QSFP+ form factor
  • Supports 39.8 Gb/s to 44.6 Gb/s aggregate bit rates
  • Power dissipation < 3.5W
  • RoHS compliant
  • Commercial temperature range 0°C to 70°C
  • Single 3.3V power supply
  • Maximum link length of 10km on Single Mode Fiber (SMF)
  • Uncooled 4x10Gb/s CWDM transmitter
  • XLPPI electrical interface
  • Duplex LC receptacles
  • Built-in digital diagnostic functions, including Tx/Rx power monitoring

Applications
  • 40GBASE-LR4 40G Ethernet
  • OTN OTU3 C4S1-2D1
  • OTU3e1 and OTU3e2

Specifications
  • Distance: 10 km
  • Data Rate (max): 44.6 Gb/s
  • Protocol: OTN OTU3 Compliant 40G Ethernet Compliant
  • Low End Case Temperature (°C): 0
  • High End Case Temperature (°C): 70
  • Diagnostics: N/A
  • Transmitter: 4x CWDM DFB Laser
  • Receiver: PIN
  • Voltage Supply: 3.3
  • Connector: LC
  • Wavelength: 1310nm Band
