Genuine Finisar FTL4C2QE2C

Home > OEM > Finisar >

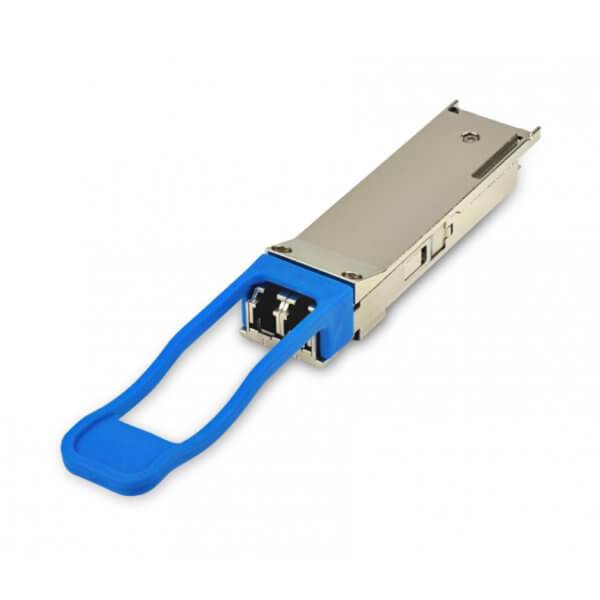

Finisar FTL4C2QE2C 40G Ethernet LM4 160m Duplex Multimode Gen2 QSFP+ Optical Transceiver

Our Price: $1,600.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: FTL4C2QE2C

Qty:

Description

FTL4C2QE2C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over duplex multimode fiber. They are compliant with the QSFP+ MSA and represent a multimode adaptation of IEEE 802.3ba 40GBASE-LR4 referred to as LM4. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features

Hot-pluggable QSFP+ form factor
Operates over duplex multimode fiber with dual LC receptacles
Supports 41.2 Gb/s aggregate bit rate
Power dissipation <3.5W
Commercial operating case temperature range 0°C to 70°C
Maximum link length of 140m on OM3 and 160m on OM4
Uncooled 4x10Gb/s CWDM transmitter
XLPPI electrical interface
Built-in digital diagnostic functions, including Tx/Rx power monitoring
RoHS compliant

Applications

40G Ethernet over MMF

Specifications

Distance: 160 m
Data Rate (max): 41.2 Gb/s
Protocol: 40G Ethernet Compliant
Low End Case Temperature (°C): 0
High End Case Temperature (°C): 70
Diagnostics: N/A
Transmitter: 4x CWDM DFB Laser
Receiver: PIN
Voltage Supply: 3.3
Connector: N/A
Wavelength: 1310nm Band
