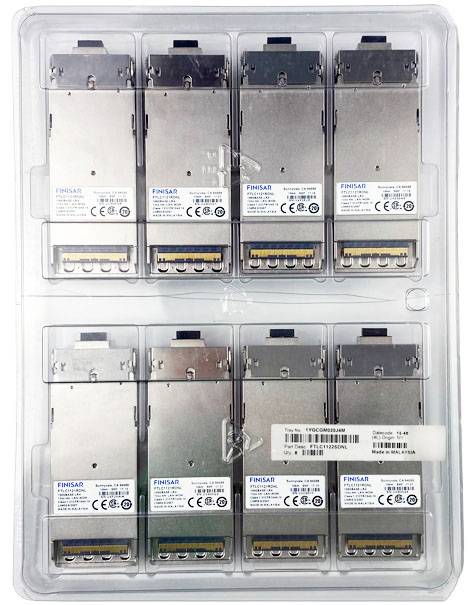

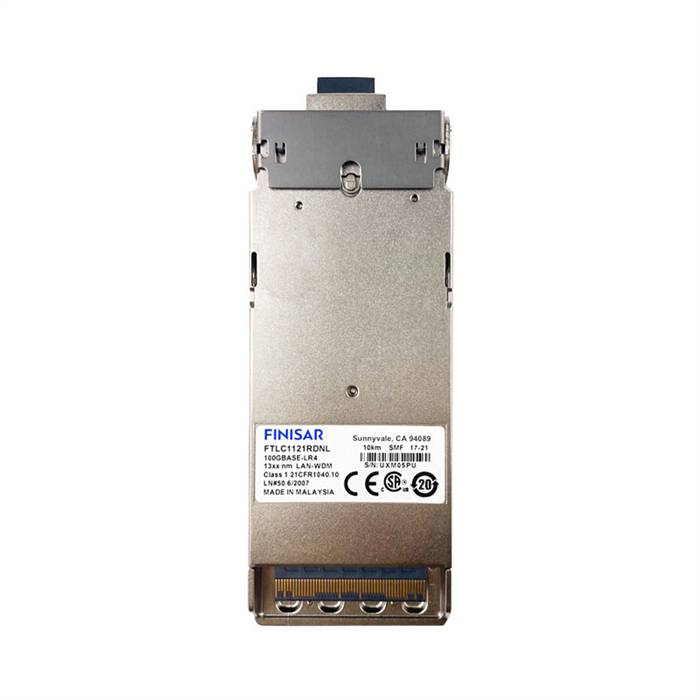

II-VI Finisar 100GBASE-LR4 10km CFP2 Optical Transceiver
II-VI Finisar FTLC1121RDNL

Alternative Views:
Our Price: $1,000.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTLC1121RDNL
Qty:

Description

The II-VI Finisar FTLC1121RDNL 100G CFP2 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber. They are compliant with the CFP MSA and IEEE 802.3ba 100GBASE-LR4 specifications. Digital diagnostics functions are available via an MDIO interface, as specified by the CFP MSA and Application Note AN-2118.  The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features
  • Hot-pluggable CFP2 form factor
  • Supports 103.1Gb/s aggregate bit rate
  • Power dissipation < 5W
  • RoHS compliant
  • Commercial case temperature range of 0°C to 75°C
  • Single 3.3V power supply
  • Maximum link length of 10km on Single Mode Fiber (SMF)
  • 4x26Gb/s DFB-based LAN-WDM transmitter
  • 4x26G electrical interface
  • Duplex LC receptacles
  • MDIO management interface

Applications
  • 100GBASE-LR4 100G Ethernet

FTLC1121RDNL
  • 1: Gen 1
  • R: 100GE-LR4 maximum bit rate (103.1 Gb/s)
  • D: 4x25G LAN-WDM optical architecture
  • N: Flat top module (no heat sink)
  • L: LC straight receptacles

Specifications
  • Data Rate (max): 103.1 Gb/s
  • Connector: LC
  • Wavelength: 1310nm Band
  • Distance: 10km
  • Diagnostics: Digital
  • Transmitter: 4x LWDM DFB Laser
  • Receiver: PIN
  • Voltage Supply: 3.3V
  • Low End Case Temperature: 0°C
  • High End Case Temperature: 75°C
  • Protocol: 100G Ethernet Compliant
