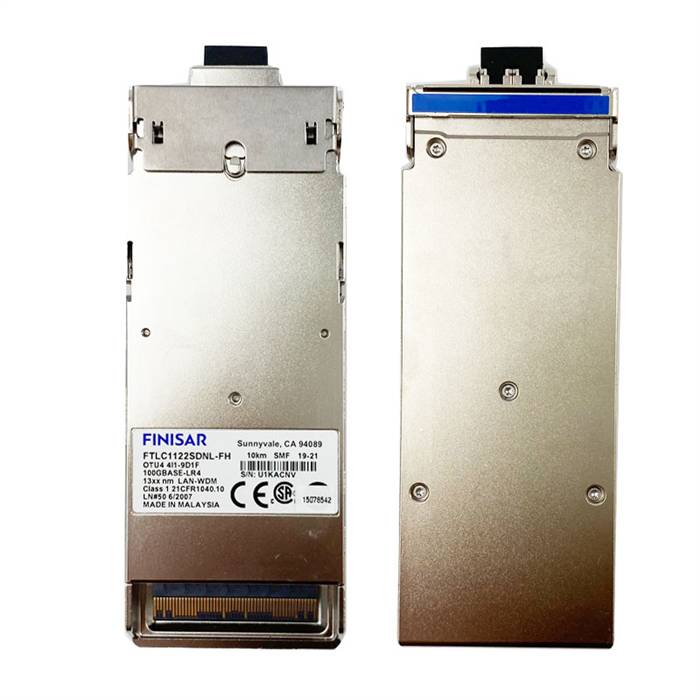

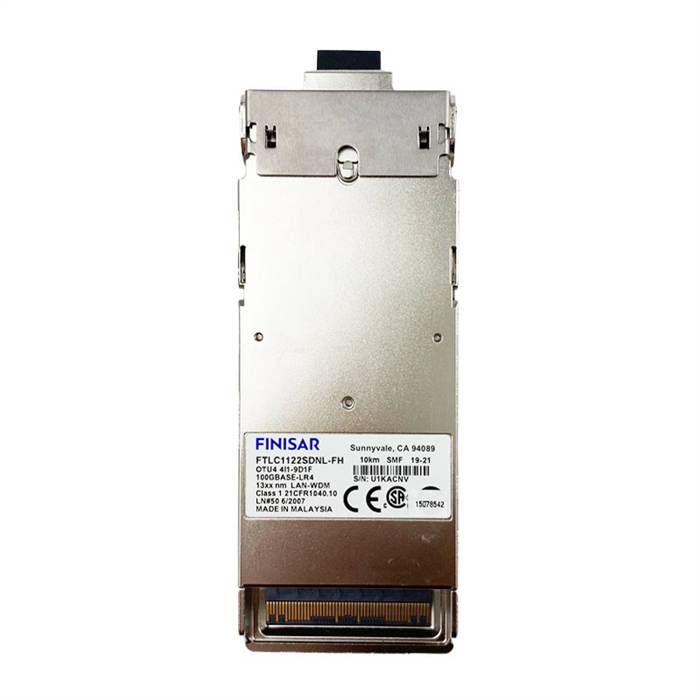

II-VI Finisar 100GBASE-LR4 13xxnm LAN-WDM OTU4 4I1-9D1F Dual Rate CFP2
II-VI Finisar FTLC1122SDNL-FH

Alternative Views:
Our Price: $4,500.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTLC1122SDNL-FH
Qty:

Description

The II-VI Finisar FTLC1122SDNL-FH second-generation 100G CFP2 transceiver modules are designed for use in 100 Gigabit Ethernet and 4x28G OTU4 client interfaces over single mode fiber. They are compliant with the CFP MSA, IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F OTL4.4 requirements specified in ITU-T, and IEEE standards, and ITU-T Recommendations G.709/Y.1331. Digital diagnostics functions are available via an MDIO interface, as specified by the CFP MSA and Application Note AN-2118. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features
  • Hot-pluggable CFP2 form factor
  • Supports 103.1Gb/s and 112Gb/s aggregate bit rates
  • Power dissipation < 5W
  • RoHS compliant
  • Commercial case temperature range of 0°C to 75°C
  • Single 3.3V power supply
  • Maximum link length of 10km on Single Mode Fiber (SMF)
  • 4x28Gb/s DFB-based LAN-WDM transmitter
  • 4x28G electrical interface
  • Duplex LC receptacles
  • MDIO management interface

FTLC1122SDNL
  • S: OTU4 maximum bit rate (112 Gb/s)
  • D: 4x28G LAN-WDM optical architecture
  • N: Flat top module (no heat sink)
  • L: LC straight receptacles

Applications
  • OTN OTU4 4I1-9D1F
  • OTUC1 (FOIC1.4)
  • 100GBASE-LR4 100G Ethernet

Specifications
  • Data Rate (max): 112 Gb/s
  • Connector: LC
  • Wavelength: 1310nm Band
  • Distance: 10km
  • Diagnostics: Digital
  • Transmitter: 4x LWDM DFB Laser
  • Receiver: PIN
  • Voltage Supply: 3.3V
  • Low End Case Temperature: 0°C
  • High End Case Temperature: 75°C
  • Protocol: 100G Ethernet Compliant
