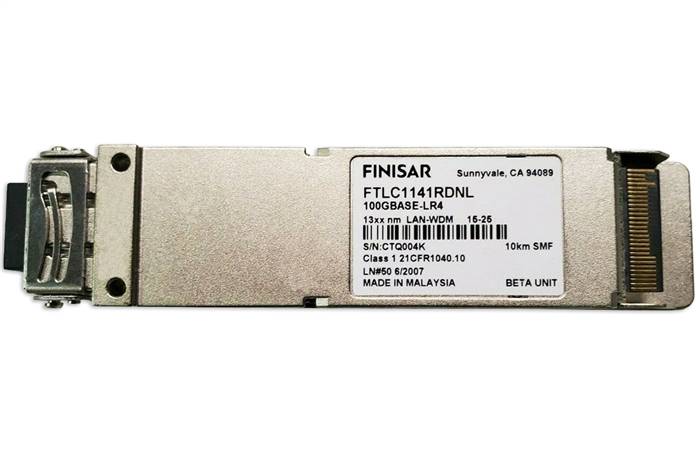

Finisar FTLC1141RDNL 100GBASE-LR4 10km CFP4 Optical Transceiver

Our Price: $2,000.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: FTLC1141RDNL

Qty:

Description

FTLC1141RDNL 100G CFP4 optical transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber. They are compliant with the CFP MSA, IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4. Digital diagnostics functions are available via the MDIO interface, as specified by the CFP MSA and Application Note AN-20xx. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features

Hot-pluggable CFP4 form factor
Supports 103.1Gb/s aggregate bit rate
Power dissipation < 5W
RoHS compliant
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
4x25Gb/s DFB-based LAN-WDM transmitter
4x25G electrical interface
Duplex LC receptacles
MDIO management interface
Commercial case temperature range: 0°C to 75°C

Applications

100GBASE-LR4 100G Ethernet

Specifications

Distance: 10 km
Data Rate (max): 103.1 Gb/s
Protocol: 100G Ethernet Compliant
Low End Case Temperature (°C): 0
High End Case Temperature (°C): 75
Diagnostics: Digital
Transmitter: 4x LWDM DFB Laser
Receiver: PIN
Voltage Supply: 3.3
Connector: LC
Wavelength: 1310nm Band
