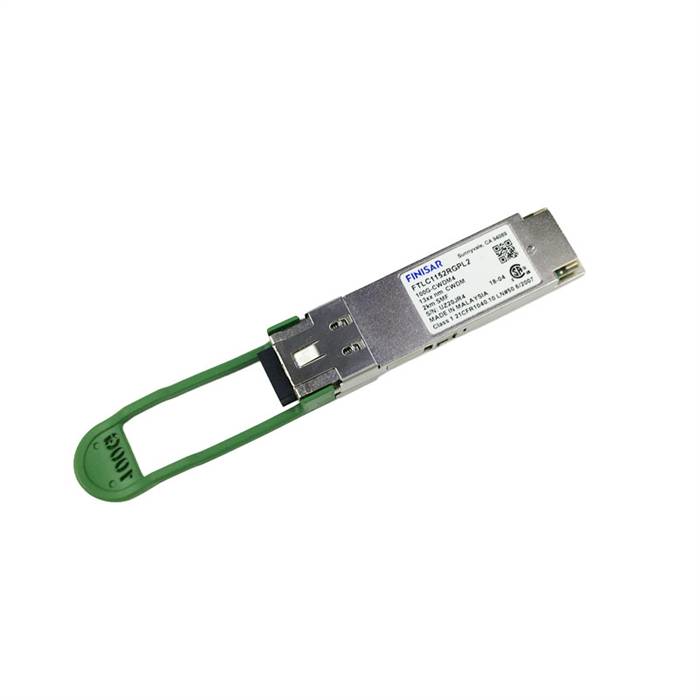

II-VI Finisar 100G CWDM4 SMF 2km LC QSFP28 Optical Transceiver
II-VI Finisar FTLC1152RGPL2

Alternative Views:
Our Price: $650.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTLC1152RGPL2
Qty:

Description

The II-VI Finisar FTLC1152RGPL2 QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 2 km of single mode fiber. They are compliant with the QSFP28 MSA, CWDM4 MSA and portions of IEEE P802.3bm. Digital Diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-2153. The transceiver is RoHS-6 compliant and lead-free per Directive 2011/65/EC and Finisar Application Note AN-2038.

Features
  • Hot-pluggable QSFP28 form factor
  • Supports 103.1Gb/s aggregate bit rate
  • Power dissipation < 3.5W
  • RoHS-6 compliant
  • Industrial case temperature range of 0°C to +70°C
  • Single 3.3V power supply
  • Loss budget of 5 dB on up to 2 km of Single Mode Fiber (SMF) [with KR4 FEC]
  • 4x25Gb/s CWDM transmitter
  • 4x25G retimed electrical interface
  • Duplex LC receptacles
  • I2C management interface

Applications
  • 100G CWDM applications with FEC

FTLC1152RGPL
  • R: Ethernetmaximum bit rate(103.1Gb/s)
  • G: 4x26G CWDMoptical architecture

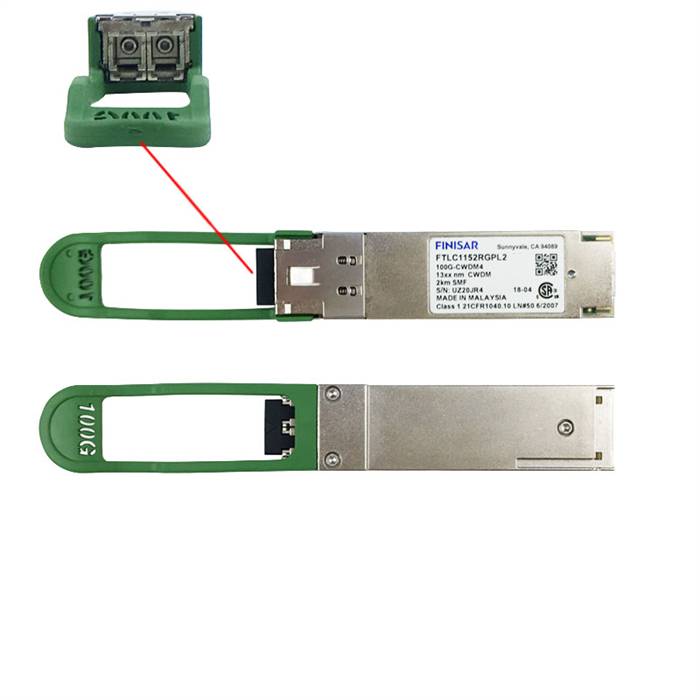

  • P: Pull-tab release
  • L: LC straight receptacles

Specifications
  • Data Rate (max): 103.1 Gb/s
  • Connector: LC
  • Wavelength: 1310nm Band
  • Distance: 2km
  • Diagnostics: Digital
  • Transmitter: 4x CWDM
  • Receiver: PIN
  • Voltage Supply: 3.3V
  • Low End Case Temperature: 0°C
  • High End Case Temperature: +70°C
  • Protocol: 100G Ethernet Compliant
