Finisar FTLC1154RDPL 100GBASE-LR4 10 km Gen2 QSFP28 Optical Transceive

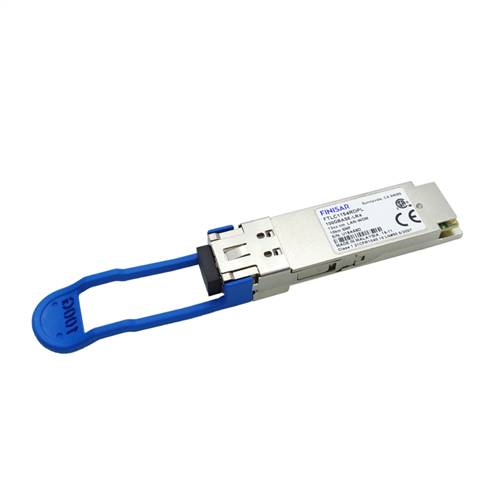

Genuine Finisar FTLC1154RDPL

Alternative Views:
Our Price: $800.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTLC1154RDPL
Qty:

Description

FTLC1154RDPL QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 10km of single mode fiber.  They are compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Application Note AN-2152 and AN-2153. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features
  • Hot-pluggable QSFP28 form factor
  • Supports 103.1Gb/s aggregate bit rate
  • Power dissipation <3.5W
  • RoHS compliant
  • Commercial case temperature range of 0°C to 70°C
  • Adaptive CTLE
  • Single 3.3V power supply
  • Maximum link length of 10km on Single Mode Fiber (SMF)
  • 4x25Gb/s DFB-based LAN-WDM transmitter
  • 4x25G retimed electrical interface
  • Duplex LC receptacles
  • I2C management interface

Applications
  • 100GBASE-LR4 100G Ethernet

Specifications
  • Distance: 10 km
  • Data Rate (max): 103.1 Gb/s
  • Protocol: 100G Ethernet Compliant
  • Low End Case Temperature (°C): 0
  • High End Case Temperature (°C): 70
  • Diagnostics: Digital
  • Transmitter: 4x LWDM DFB Laser
  • Receiver: PIN
  • Voltage Supply: 3.3
  • Connector: LC
  • Wavelength: 1310nm Band
