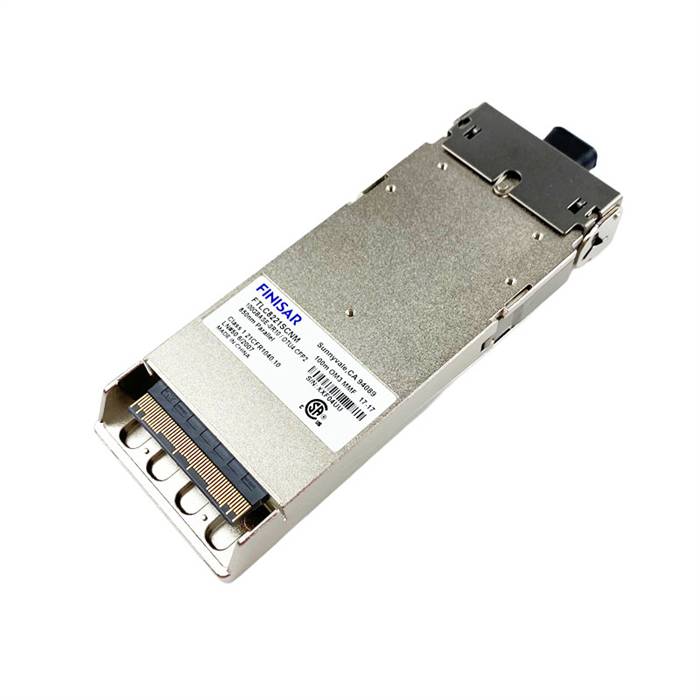

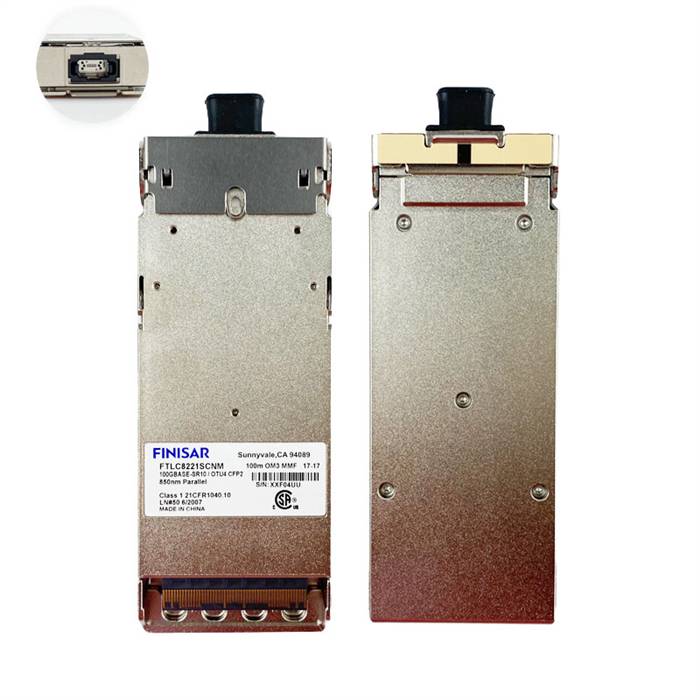

II-VI Finisar 103.1Gb/s 100GBASE-SR10 and OTN Multirate 100m CFP2 Optical Transceiver
II-VI Finisar FTLC8221SCNM

Alternative Views:
Our Price: $1,950.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTLC8221SCNM
Qty:

Description

The II-VI Finisar FTLC8221SCNM 100GE CFP2 transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the CFP2 MSA as defined in this document and with IEEE 802.3ba 100GBASE-SR10 including 10x 11.2G OTN applications. Digital diagnostics functions are available via an MDIO interface, as specified by the CFP2 MSA and Application Note AN-2106. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features
  • Hot-pluggable CFP2 form factor
  • Supports 103.1Gb/s and 112Gb/s aggregate bit rates
  • Power dissipation <4W
  • RoHS-6 compliant
  • Single 3.3V power supply
  • Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
  • Uncooled 10x10Gb/s 850nm transmitter
  • CPPI electrical interface
  • Single MPO24 receptacle
  • MDIO management interface
  • Tx/Rx optical power monitoring functionality
  • Commercial case temperature range: 0°C to 70°C

Specifications
  • Distance: 100 m
  • Data Rate (max): 112 Gb/s
  • Protocol: OTN OTU4 Compliant 100G Ethernet Compliant
  • Low End Case Temperature (°C): 0
  • High End Case Temperature (°C): 70
  • Diagnostics: Digital
  • Transmitter: VCSEL
  • Receiver: PIN
  • Voltage Supply: 3.3
  • Connector: MPO
  • Wavelength: 850nm Band
