Genuine Finisar FTLC9558REPM

Home > OEM > Finisar >

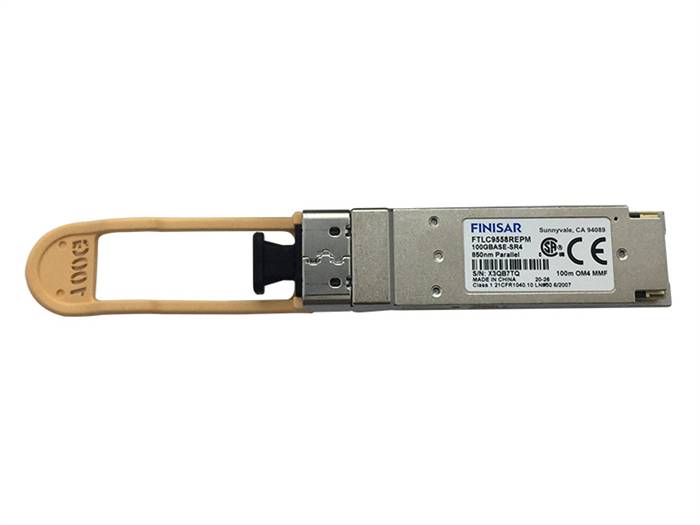

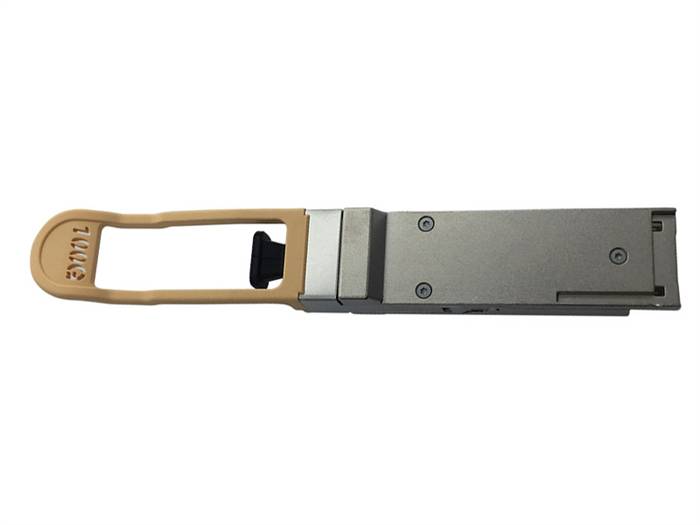

Finisar FTLC9558REPM 100G Parallel MMF 100m Gen3 QSFP28 Optical Transceiver

Alternative Views:

Our Price: $950.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: FTLC9558REPM

Qty:

Description

FTLC9558REPM 100G QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4 and CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Application Note AN-2141. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features

Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rate
Power dissipation <2.5W
RoHS compliant
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 100m on OM4 Multimode Fiber (MMF)
4x25Gb/s 850nm VCSEL-based transmitter
4x25G electrical interface
Single MPO12 receptacle
I2C management interface

Applications

100GBASE-SR4 100G Ethernet

Specifications

Distance: 100 m
Data Rate (max): 103.1 Gb/s
Protocol: 25G Ethernet Compliant 100G Ethernet Compliant
Low End Case Temperature (°C): 0
High End Case Temperature (°C): 70
Diagnostics: Digital
Transmitter: 4x VCSEL
Receiver: PIN
Voltage Supply: 3.3
Connector: MPO (MTP12)
Wavelength: 850nm Band
