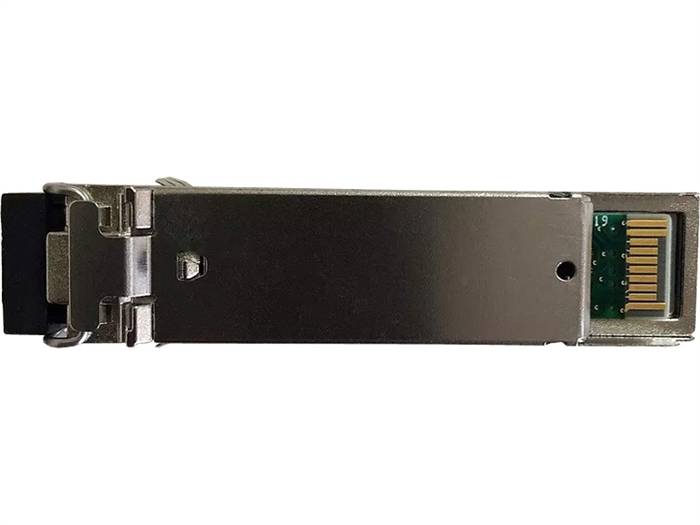

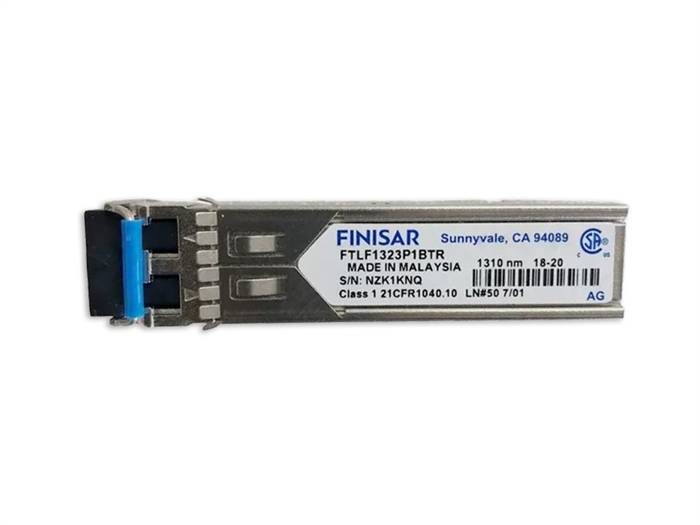

Finisar FTLF1323P1BTR OC-3 SR-1/STM I-1 or OC-3 IR-1/STM S-1.1 SFP Optical Transceiver
Genuine Finisar FTLF1323P1BTR

Alternative Views:
Our Price: $35.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTLF1323P1BTR
Qty:

Description

FTLF1323P1BTR Small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They comply with SONET and SDH standards at OC-3 IR-1/STM S-1.1 and OC-3 SR/STM I-1, and are suitable for Fast Ethernet applications. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features
  • Up to 155 Mb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Built-in digital diagnostic functions
  • Uncooled Fabry-Perot 1310nm laser transmitter
  • Duplex LC connector
  • RoHS compliant
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply
  • Low power dissipation <700mW typical
  • Industrial operating temperature range: -40°C to 85°C

Applications
  • SONET OC-3 IR-1 / SDH STM S-1.1
  • SONET OC-3 SR / SDH STM I-1
  • Suitable for Fast Ethernet

Specifications
  • Distance: 15km
  • Data Rate (max): 155 Mb/s
  • Protocol: Optical Fast Ethernet Compatible SONET OC-3 Compliant Wireless CPRI Compliant
  • Low End Case Temperature (°C): -40
  • High End Case Temperature (°C): 85
  • Diagnostics: Digital
  • Transmitter: Fabry-Perot Laser
  • Receiver: PIN
  • Voltage Supply: 3.3
  • Connector: LC
  • Wavelength: 1310nm
