II-VI Finisar 6.144G 1310nm SMF 2km SFP+ Fiber Optic Transceiver

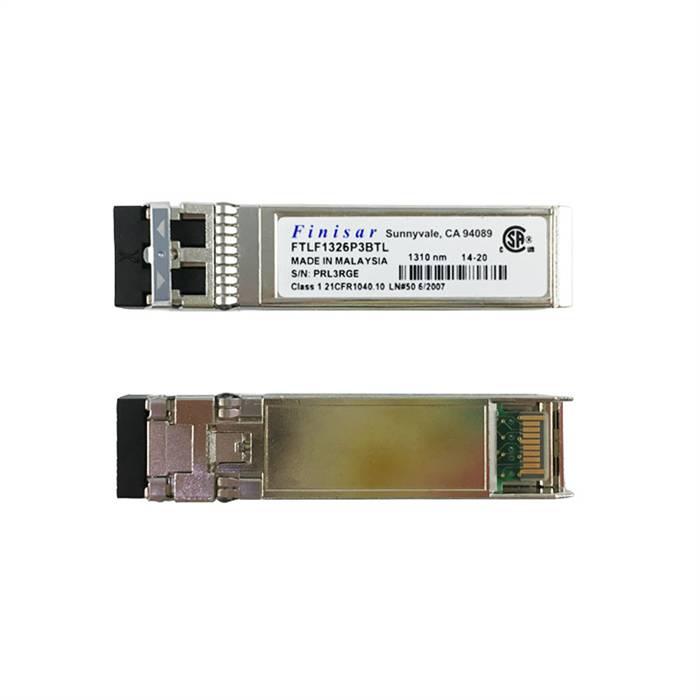

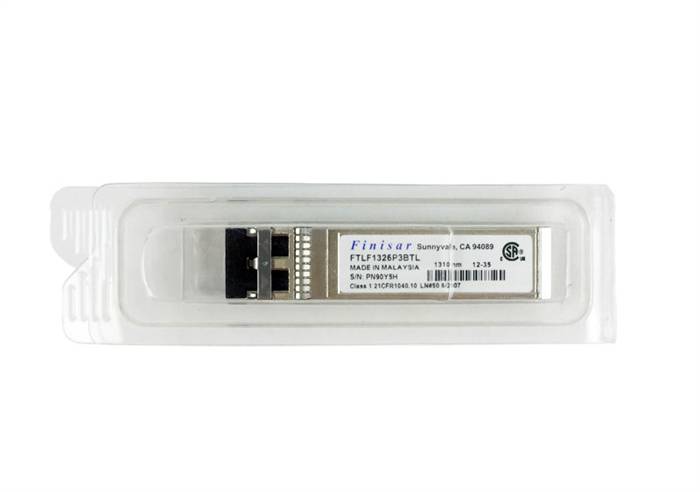

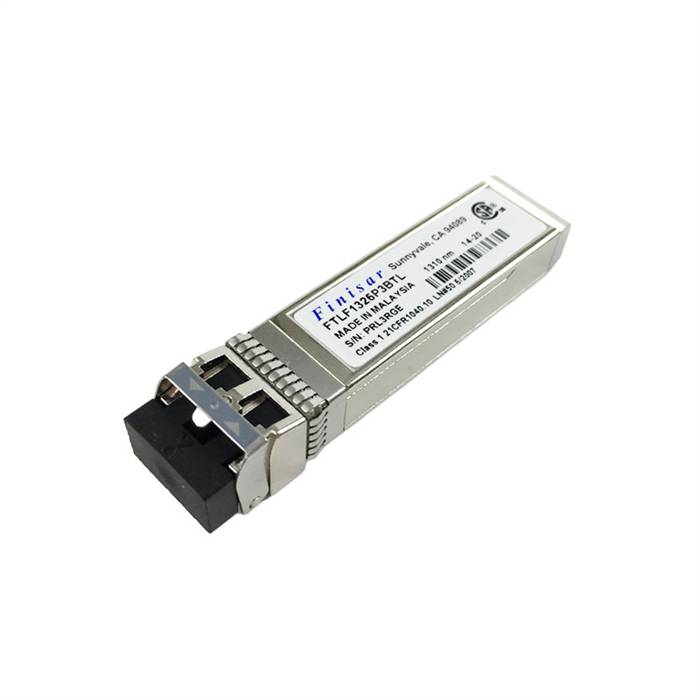

II-VI Finisar FTLF1326P3BTL

Alternative Views:


Our Price: $14.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTLF1326P3BTL
Qty:

Description

The II-VI Finisar FTLF1326P3BTL SFP+ transceivers are designed for use in Wireless basestation links up to 2 km at 4.915 and 6.144 Gb/s data rates for CPRI, OBSAI, LTE, or other Wireless applications. They are compliant with SFF-8432, SFF-8472 Rev 10.2, CPRI Rev 4.1, OBSAI Rev V4.1, and applicable portions of FC-PI-4 Rev. 8.00; they are also compatible with 1.228 and 2.457 Gb/s data rates for CPRI and applicable portions of SFF-8431 Rev. 3.0. The product is RoHS compliant and lead-free per Directive 2002/95/EC and Finisar Application Note AN-2038.

Features
  • Up to 6.144 Gb/s bi-directional data links
  • Hot-pluggable SFP+ footprint
  • Built-in digital diagnostic functions
  • 1310nm Fabry-Perot laser transmitter
  • Duplex LC connector
  • RoHS compliant and Lead Free
  • Up to 2 km at 6.144 Gb/s on 9/125?m SMF
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply
  • Industrial operating temperature range: -40°C to 85°C

Applications
  • 2.457 Gb/s CPRI
  • 4.915 Gb/s CPRI/LTE
  • 6.144 Gb/s CPRI/OBSAI/LTE

Specifications
  • Data Rate (max): 6.144 Gb/s
  • Connector: LC
  • Wavelength: 1310nm
  • Distance: 2km
  • Diagnostics: Digital
  • Transmitter: FP Laser
  • Receiver: PIN
  • Voltage Supply: 3.3V
  • Low End Case Temperature: -40°C
  • High End Case Temperature: +85°C
  • Protocol: SFF-8432, SFF-8472 Rev 10.2, CPRI Rev 4.1, OBSAI Rev V4.1
