Genuine Finisar FTLF1421P1BTL

Home > OEM > Finisar >

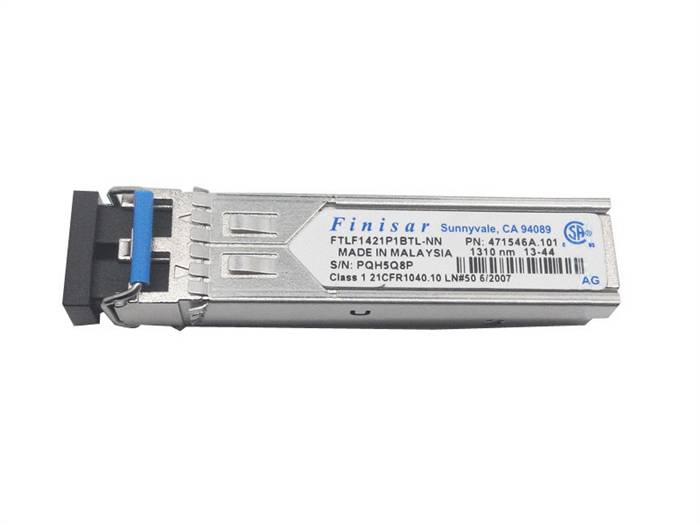

Finisar FTLF1421P1BTL OC-48 IR-1/STM S-16.1 SFP Industrial Temperature Optical Transceiver

Our Price: $320.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: FTLF1421P1BTL

Qty:

Description

FTLF1421P1BTL Small Form Factor Pluggable (SFP) optical transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They comply with SONET OC-48 IR-1 (SDH STM S-16.1), Gigabit Ethernet as specified in IEEE Std 802.3 and Fibre Channel FC-PI 13.0. They are also compatible with SONET OC-12 and SONET OC-3 standards. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features

Up to 2.67Gb/s bi-directional data links
Hot-pluggable SFP footprint
Built-in digital diagnostic functions
Uncooled DFB 1310nm laser transmitter
Duplex LC connector
RoHS compliant
Metal enclosure, for lower EMI
FEC Support
Single 3.3V power supply
Low power dissipation <700mW typical
Industrial operating temperature range: -40°C to 85°C

Applications

SONET OC-48 IR-1 / SDH STM S-16.1
SONET OC-12 SR / SDH STM I-4
SONET OC-3 SR / SDH STM I-1
Gigabit Ethernet / 1x/2x Fibre Channel

Specifications

Distance: 15 km
Data Rate (max): 2.67 Gb/s
Protocol: Optical Gigabit Ethernet Compliant 1x Fibre Channel Compliant 2x Fibre Channel Compliant SONET OC-3 Compatible SONET OC-12 Compatible SONET OC-48 Compliant Wireless CPRI Compliant
Low End Case Temperature (°C): -40
High End Case Temperature (°C): 85
Diagnostics: Digital
Transmitter: DFB Laser
Receiver: PIN
Voltage Supply: 3.3
Connector: LC
Wavelength: 1310nm
