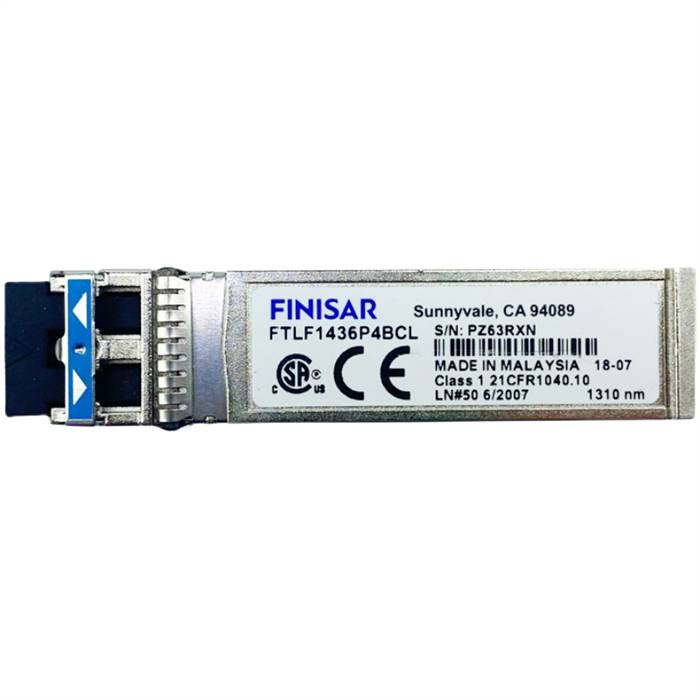

Finisar FTLF1436P4BCL 25GE LR 10km SFP28 Optical Transceiver

FTLF1436P4BCL SFP28 optical transceivers are designed for use in Ethernet links up to 25.78 Gb/s data rate and up to 10 km link length. They are compliant with SFF-8472 Rev 12.2 and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 3.0. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features

• Up to 25.78 Gb/s bi-directional data links
• Hot-pluggable SFP28 footprint
• Built-in digital diagnostic functions
• 1310nm DFB laser transmitter
• Duplex LC connector
• RoHS compliant
• Up to 10 km on 9/125?m SMF
• Metal enclosure, for lower EMI
• 1.5W maximum power consumption with established link
• Single 3.3V power supply
• Operating temperature range: 0°C to 70°C

Specifications

• Brand: II-VI / Finisar
• Part Number: ?FTLF1436P3BCL
• Distance: 10 km
• Data Rate (max): 25.78 Gb/s
• Protocol: 25G Ethernet Compliant
• Low End Case Temperature (°C): 0
• High End Case Temperature (°C): 70
• Diagnostics: Digital
• Transmitter: DFB Laser
• Receiver: PIN
• Voltage Supply: 3.3
• Connector: LC
• Wavelength: 1310nm Band

Applications

• 25GE LR
