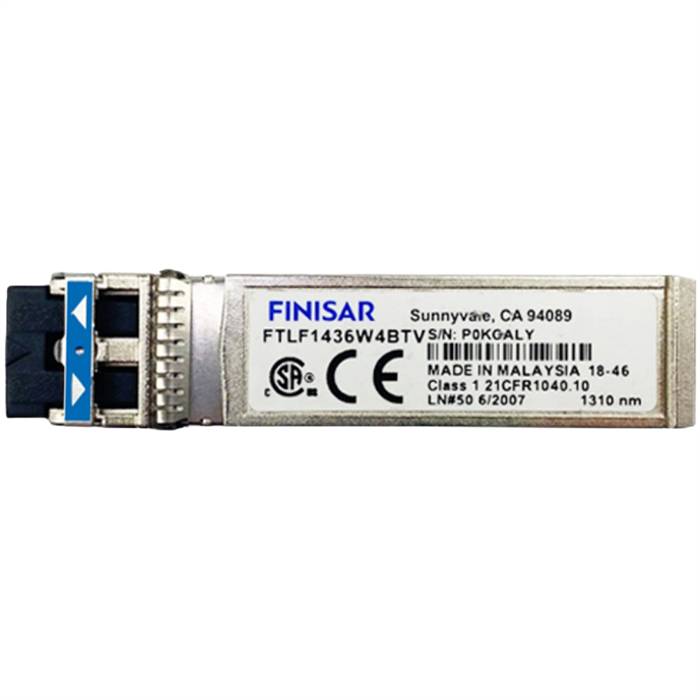

Finisar FTLF1436W4BTV 25GE LR/eCPRI Long Wavelength SFP28 Optical Transceiver

FTLF1436W4BTV SFP28 transceivers are designed for use in Ethernet links up to 25.78 Gb/s data rate and up to 10km link length. They are compliant to SFF-8472 Rev 12.2, and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 3.0.  The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features

• Up to 25.78 Gb/s bi-directional data links
• Hot-pluggable SFP+ footprint
• Built-in digital diagnostic functions
• 1310nm DFB laser transmitter
• Duplex LC connector
• RoHS compliant
• Up to 10 km on 9/125?m SMF
• Metal enclosure, for lower EMI
• 1.5W maximum power consumption with established link
• Single 3.3V power supply
• Operating temperature range: -40°C to 85°C

Specifications

• Brand: II-VI / Finisar
• Part Number: ??FTLF1436W4BTV
• Distance: 10 km
• Data Rate (max): 25.78 Gb/s
• Protocol: 25G Ethernet Compliant Wireless CPRI Compliant
• Low End Case Temperature (°C): -40
• High End Case Temperature (°C): 85
• Diagnostics: Digital
• Transmitter: DFB Laser
• Receiver: PIN
• Voltage Supply: 3.3
• Connector: LC
• Wavelength: 1310nm Band

Applications

• 25GE LR
• eCPRI & CPRI
