Finisar FTLF1518P1BTL 1000BASE-ZX and 1G Fibre Channel (1GFC) 80km SFP Optical Transceiver

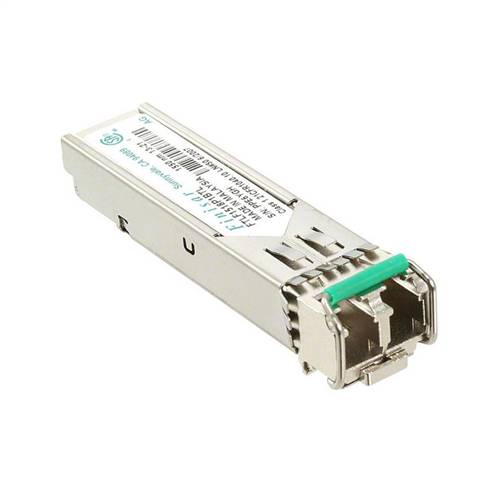

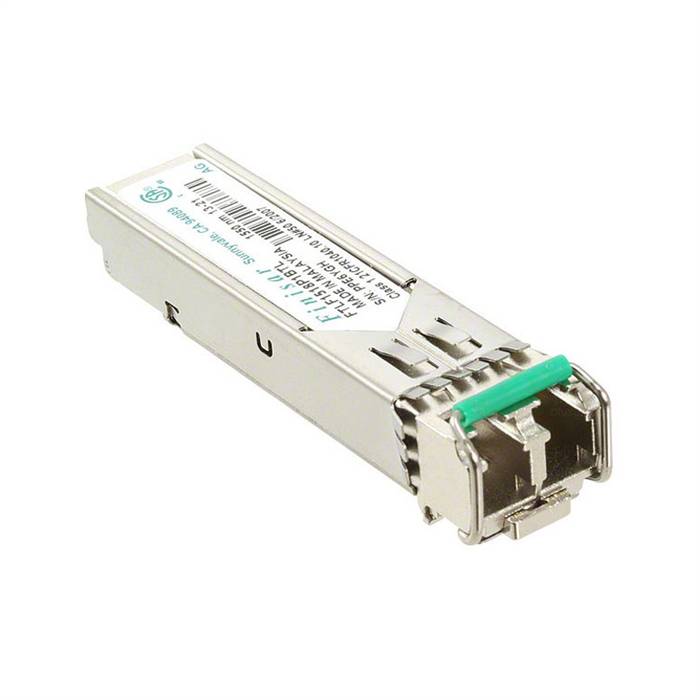

Genuine Finisar FTLF1518P1BTL

Our Price: $525.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTLF1518P1BTL
Qty:

Description

FTLF1518P1BTL Small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE Std 802.3 and 1x Fibre Channel as defined in FC-PI-4 Rev 8.00. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features
  • Up to 1.25Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Built-in digital diagnostic functions
  • Uncooled 1550nm DFB laser transmitter
  • Duplex LC connector
  • RoHS compliant
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply
  • Up to 80 km on 9/125?m SMF
  • Low power dissipation <700mW typical
  • Extended operating temperature range: -40°C to 85°C

Applications
  • Gigabit Ethernet
  • 1X Fibre Channel

Specifications
  • Distance: 80km
  • Data Rate (max): 1.25 Gb/s
  • Protocol: Optical Gigabit Ethernet Compliant 1x Fibre Channel Compliant Wireless CPRI Compliant
  • Low End Case Temperature (°C): -40
  • High End Case Temperature (°C): 85
  • Diagnostics: Digital
  • Transmitter: DFB Laser
  • Receiver: PIN
  • Voltage Supply: 3.3
  • Connector: LC
  • Wavelength: 1550nm
