Finisar FTLF8519P3BNL 1000BASE-SX and 2G Fibre Channel (2GFC) 500m Extended Temperature SFP Optical Transceiver

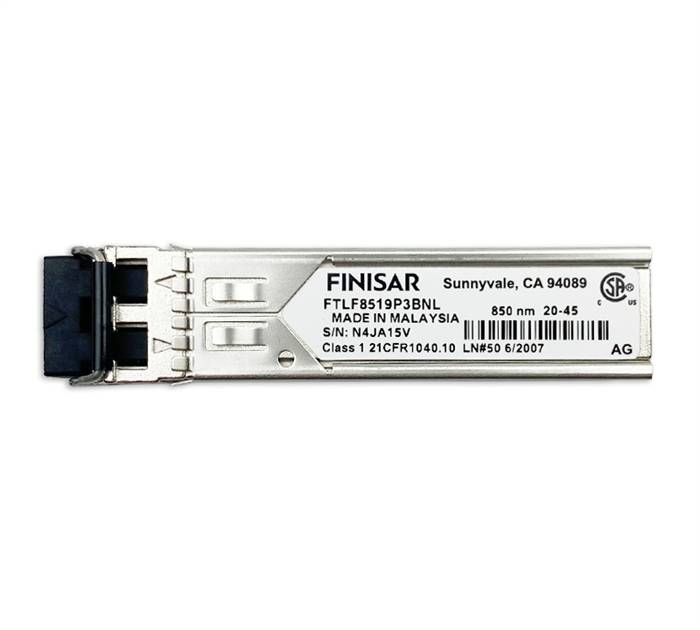

Genuine Finisar FTLF8519P3BNL

Our Price: $35.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTLF8519P3BNL
Qty:

Description

FTLF8519P3BNL Small Form Factor Pluggable (SFP) optical transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3 and Fibre Channel FC- PI-2 Rev. 5.0. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features
  • Up to 2.125 Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Built-in digital diagnostic functions
  • 850nm Oxide VCSEL laser transmitter
  • Duplex LC connector
  • RoHS compliant
  • Up to 500m on 50/125 µm MMF, 300m on 62.5/125 µm MMF
  • Metal enclosure, for lower EMI
  • Single 3.3 V power supply
  • <500mW power dissipation
  • Extended operating temperature range: -20°C to 85°C

Applications
  • 1.25 Gb/s 1000Base-SX Ethernet
  • Dual Rate 1.063/2.125 Gb/s Fibre Channel
  • Wireless – CPRI, OBSAI, LTE

Specifications
  • Distance: 500 m
  • Data Rate (max): 2.125 Gb/s
  • Protocol: Optical Gigabit Ethernet Compliant 1x Fibre Channel Compliant 2x Fibre Channel Compliant Wireless CPRI Compliant
  • Low End Case Temperature (°C): -20
  • High End Case Temperature (°C): 85
  • Diagnostics: Digital
  • Transmitter: VCSEL
  • Receiver: PIN
  • Voltage Supply: 3.3
  • Connector: LC
  • Wavelength: 850nm Band
