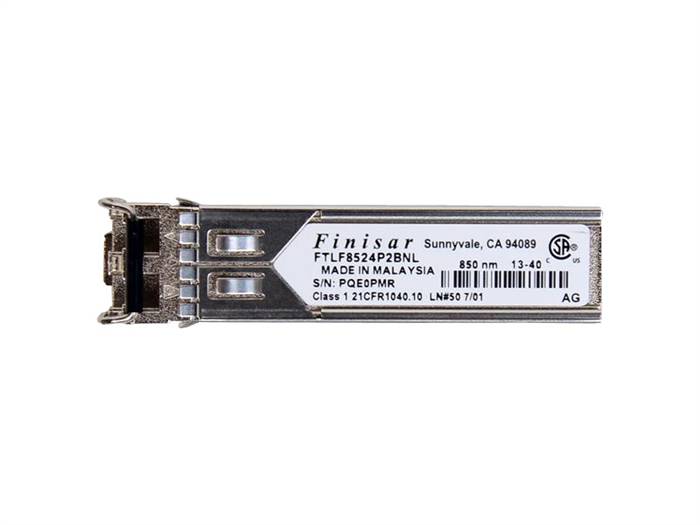

Finisar FTLF8524P2BNL 4G Fibre Channel (4GFC) 150m SFP Optical Transceiver
Genuine Finisar FTLF8524P2BNL

Our Price: $100.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTLF8524P2BNL
Qty:

Description

FTLF8524P2BNL Small Form Factor (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They are compatible with Fibre Channel FC-PI-2 Rev. 7.0. Rate selectable versions are also compatible with Gigabit Ethernet as specified in IEEE Std 802.3. The optical transceiver is RoHS compliant as described in Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.

Features
  • Up to 4.25 Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Built-in digital diagnostic functions
  • 850 nm Oxide VCSEL transmitter
  • Duplex LC connector
  • RoHS compliant
  • Up to 500 meter on 50/125 µm MMF, 300 meter on 62.5/125 µm MMF
  • Metal enclosure for lower EMI
  • Single 3.3 V power supply
  • Extended operating temperature range: -20°C to 85°C

Applications
  • Tri-rate 1.063/2.125/4.25 Gb/s Fibre Channel

Specifications
  • Distance: 550 m
  • Data Rate (max): 4.25 Gb/s
  • Protocol: Optical Gigabit Ethernet Compatible 1x Fibre Channel Compliant 2x Fibre Channel Compliant 4x Fibre Channel Compliant
  • Low End Case Temperature (°C): -20
  • High End Case Temperature (°C): 85
  • Diagnostics: Digital
  • Transmitter: VCSEL
  • Receiver: PIN
  • Voltage Supply: 3.3
  • Connector: LC
  • Wavelength: 850nm
