Genuine Finisar FTLF8524P3BNL

Home > OEM > Finisar >

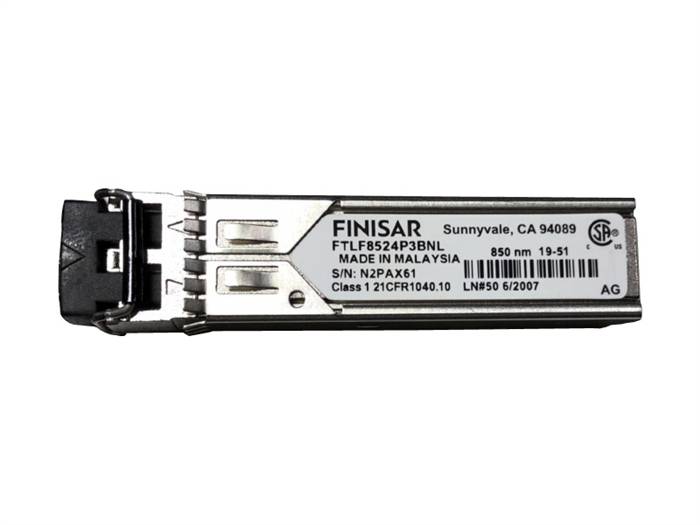

Finisar FTLF8524P3BNL 3.7G CPRI Wireless 300m SFP Optical Transceiver

Our Price: $30.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: FTLF8524P3BNL

Qty:

Description

FTLF8524P3BNL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The optical transceiver is RoHS compliant as described in Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.

Features

Up to 3.7 Gb/s bi-directional data links
Hot-pluggable SFP footprint
Built-in digital diagnostic functions
850nm Oxide VCSEL transmitter
Duplex LC connector
RoHS compliant
Up to 300m on 62.5/125 µm MMF
Metal enclosure for lower EMI
Single 3.3 V power supply
<0.5W power dissipation
Extended operating temperature range: -40°C to 85°C

Applications

Dual Rate 1.063/2.125 Gb/s Fibre Channel and Wireless application
1.25 Gb/s 1000BASE-SX Ethernet

Specifications

Distance: 300 m
Data Rate (max): 3.7 Gb/s
Protocol: Optical Gigabit Ethernet Compatible 1x Fibre Channel Compliant 2x Fibre Channel Compliant Wireless CPRI Compliant
Low End Case Temperature (°C): -40
High End Case Temperature (°C): 85
Diagnostics: Digital
Transmitter: VCSEL
Receiver: PIN
Voltage Supply: 3.3
Connector: LC
Wavelength: 850nm
