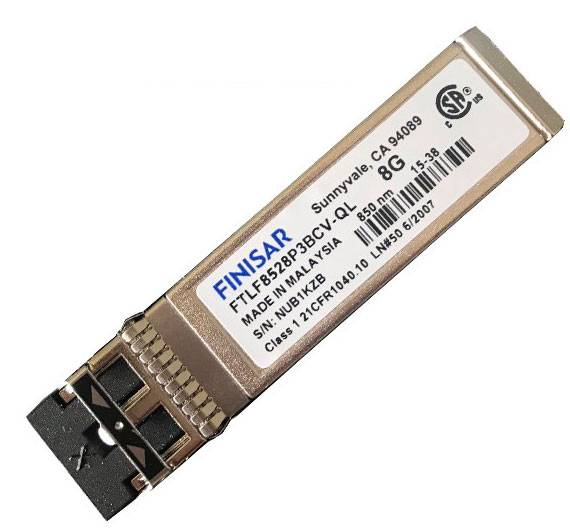

Genuine Qlogic FTLF8528P3BCV-QL 8G Fibre Channel Short Wave 150m SFP+ Optical Transceiver
FTLF8528P3BCV-QL - Qlogic

Our Price: $80.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTLF8528P3BCV-QL
Qty:

Description

Qlogic FTLF8528P3BCV-QL SFP+ transceivers are designed for use in Fibre Channel links up to 8.5 Gb/s data rate over multimode fiber. They are compliant with FC-PI-4 Rev. 8.00 and SFF-8472 Rev 11.0, and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 4.1. The optical transceiver is RoHS compliant.

Features
  • Type: SFP+
  • Compatibility: Finisar compatible
  • Tx/Rx Wavelength: 850 nm. / 850 nm.
  • Media Type: Multi-Mode Fiber (MMF)
  • Optical Budget: 4.6 dB
  • Max. Distance: 300 m (OM2), 33 m /82 m (OM1)
  • Data Rate: 1.0625-10.52 Gbps
  • Temperature:Standard 0°-70°C

Specifications
  • Media Type: Multi-Mode Fiber (MMF)
  • TX Wavelength: 850 nm.
  • RX Wavelenght: 850 nm.
  • Minimum Optical Budget: 4.6 dB
  • Maximum Distance: 300m
  • Supported Data Rate: 1.0625-10.52 Gbps
  • Supported Applications: 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps)
  • DDM/DOM: Support
  • Temperature Range: Standard 0°-70°C
  • Connectors: Double LC
  • Tx Wavelength Bandwidth: 20 nm (840-860 nm)
  • Rx Wavelength Bandwidth: 20 nm (840-860 nm)
  • Minimum Transmitting Power: -6.5 dB
  • Maximum Transmitting Power: 1 dB
  • Receiver Sensitivity: -11.1 dBm
  • Receiver Overload: -1 dBm
  • Dispersion: 110 ps/nm
  • Transmitter Type: VSCEL Laser
  • Receiver Type: PIN photodiode
  • Power: +3.3V single power supply
  • Chipset: MAXIM, MINDSPEED, SEMTECH
  • Compliance: CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA
