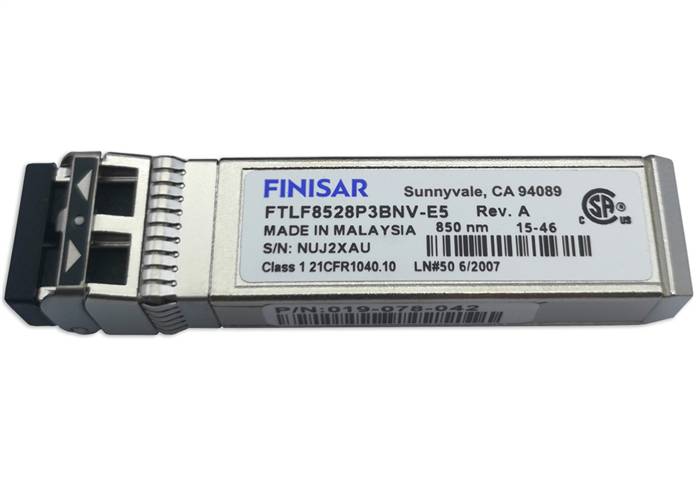

Finisar FTLF8528P3BNV 8G Fibre Channel (8GFC) 150m Extended Temperature SFP+ Optical Transceiver

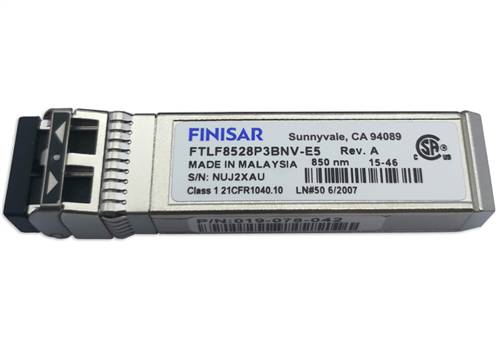

Genuine Finisar FTLF8528P3BNV

Our Price: $100.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTLF8528P3BNV
Qty:

Description

FTLF8528P3BNV SFP+ transceivers are designed for use in Fibre Channel links up to 8.5 Gb/s data rate over multimode fiber. They are compliant with FC-PI-4 Rev. 8.00 and SFF-8472 Rev 11.0, and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 4.1. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features
  • Up to 8.5 Gb/s bi-directional data links
  • Hot-pluggable SFP+ footprint
  • Built-in digital diagnostic functions
  • 850nm Oxide VCSEL laser transmitter
  • Duplex LC connector
  • RoHS compliant
  • 50m on 50/125?m MMF
  • 150m on high-bandwidth
  • 50/125um (OM3) MMF
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply
  • <0.5W power dissipation
  • Extended operating temperature range: -5°C to 85°C

Applications
  • Tri-Rate 2.125/4.25/8.5 Gb/s Fibre Channel
  • Wireless – CPRI
  • Wireless – OBSAI

Specifications
  • Distance: 100 m
  • Data Rate (max): 8.5 Gb/s
  • Protocol: 1x Fibre Channel Compatible 2x Fibre Channel Compliant 4x Fibre Channel Compliant 8x Fibre Channel Compliant
  • Low End Case Temperature (°C): -5
  • High End Case Temperature (°C): 85
  • Diagnostics: Digital
  • Transmitter: VCSEL
  • Receiver: PIN
  • Voltage Supply: 3.3
  • Connector: LC
  • Wavelength: 850nm
