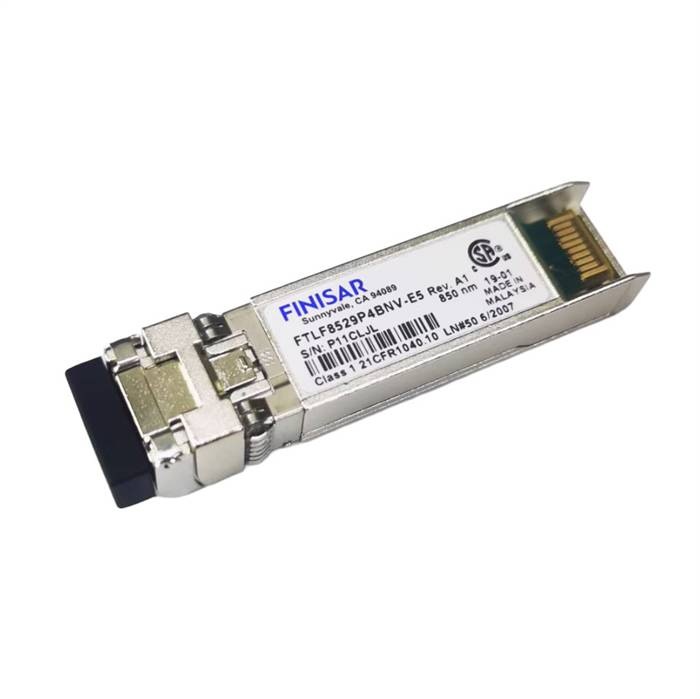

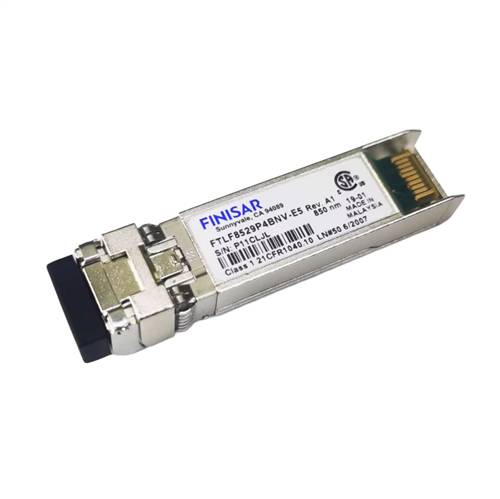

Finisar FTLF8529P4BNV-E5 16/8/4Gb 850nm SWL LC 100m SFP+ Fiber Optic Transceiver

Finisar's FTLF8529P4BNV-E5 SFP+ transceivers are designed for use in Fibre Channel links up to 14.025 Gb/s data rate over multimode fiber. They are compliant with FC-PI-5 Rev. 6.00, SFF-8472 Rev 11.0 and SFF-8081, and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 4.1. The product is RoHS compliant and lead-free per Directive 2002/95/EC and Finisar Application Note AN-2038.

Features

• Up to 14.025 Gb/s bi-directional data links
• Hot-pluggable SFP+ footprint
• Built-in digital diagnostic functions
• 850nm Oxide VCSEL laser transmitter
• Duplex LC connector
• RoHS compliant and Lead Free
• 35m on 50/125μm MMF
• 100m on high-bandwidth 50/125μm (OM3) MMF
• Metal enclosure, for lower EMI
• Single 3.3V power supply
• Operating temperature range: 0°C to 85°C

Applications

• Tri-Rate 4.25/8.5/14.025 Gb/s Fibre Channel
