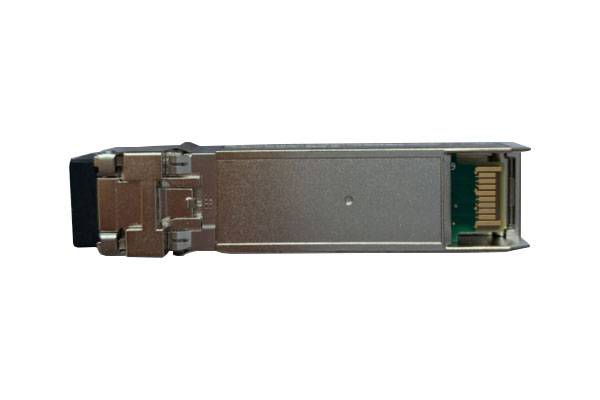

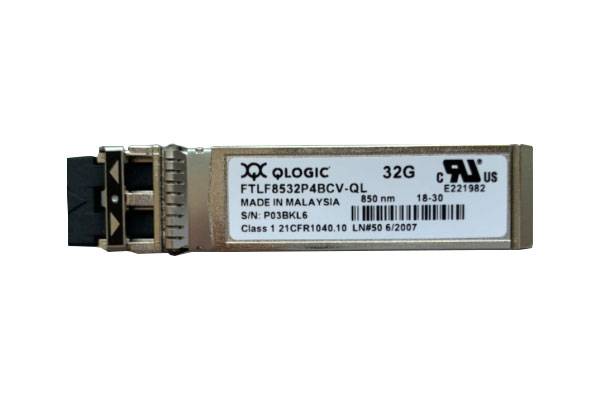

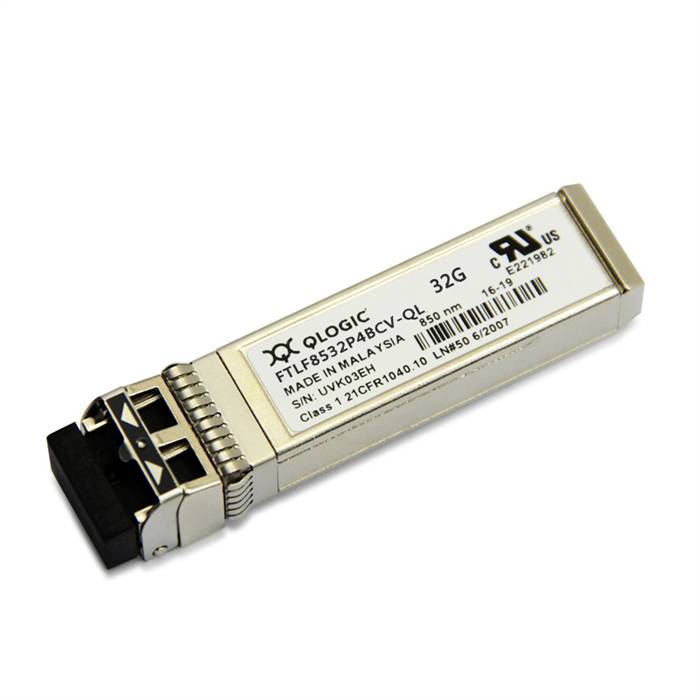

Genuine Qlogic FTLF8532P4BCV-QL 32G Fibre Channel 32GFC 850nm 100m Short Wavelength SFP+ Optical Transceiver

Features

• Up to 28.05Gb/s bi-directional data links
• Hot-pluggable SFP+ footprint
• Built-in digital diagnostic functions
• 850nm Oxide VCSEL laser transmitter
• Duplex LC connector
• 100m over M5F MMF (50/125 um OM4)
• 70m over M5E MMF (50/125 um OM3)
• 20m on 50um (OM2) MMF,
• Metal enclosure, for lower EMI
• Single 3.3V power supply
• Operating temerature range: 0? to 70?
• Tri-Rate 8.5/14.025/28.05 Gb/s Fibre Channel

Specifications

• Brand: Qlogic
• Part Number: FTLF8532P4BCV-QL
• Place of origin: Malaysia
• Form Factor: SFP+
• Wavelength: 850nm
• Distance: 100m
• Data Rate (max): 32Gb/s
• Low End Case Temperature (°C): 0°C
• High End Case Temperature (°C): 70°C
• Diagnostics: Digital
• Transmitter: VCSEL
• Receiver: PIN
• Voltage Supply: 3.3--5v
• Connector: Dual LC
