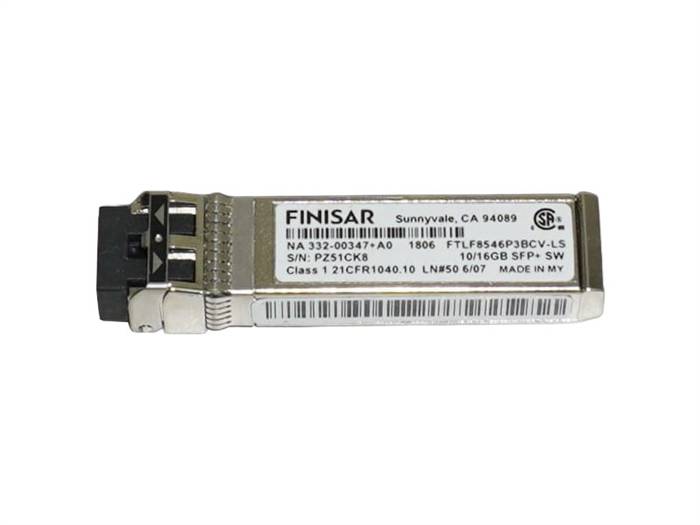

II-VI Finisar Lenovo 10Gb iSCSI / 16Gb FC Universal SFP+ Module
II-VI Finisar FTLF8546P3BCV-LS

Alternative Views:
Our Price: $220.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTLF8546P3BCV-LS
Qty:

Description

The II-VI Finisar Lenovo FTLF8546P3BCV-LS SFP+ transceivers are designed for use in Fibre Channel links up to 14.025 Gb/s data rate over multimode fiber. They are compliant with FC-PI-5 Rev. 6.00, SFF-8472 Rev 11.0 and SFF-8081, and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 4.1. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features
  • Up to 14.025 Gb/s bi-directional data links
  • Hot-pluggable SFP+ footprint
  • Built-in digital diagnostic functions
  • 850nm Oxide VCSEL laser transmitter
  • Duplex LC connector
  • RoHS compliant
  • 35m on 50/125?m MMF
  • 100m over M5E MMF (50/125um OM3)
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply
  • Operating temperature range: 0°C to 70°C

Applications
  • 14.025 Gb/s Fibre Channel
  • 10.3 Gb/s Fibre Channel

Specifications
  • Data Rate (max): 14.025 Gb/s
  • Connector: Duplex LC
  • Wavelength: 850nm
  • Distance: 100 m
  • Diagnostics: Digital
  • Transmitter: VCSEL
  • Receiver: PIN
  • Voltage Supply: 3.3V
  • Low End Case Temperature: 0°C
  • High End Case Temperature: 70°C
  • Protocol: 10x Fibre Channel Compliant 10 Gigabit Ethernet Compliant
