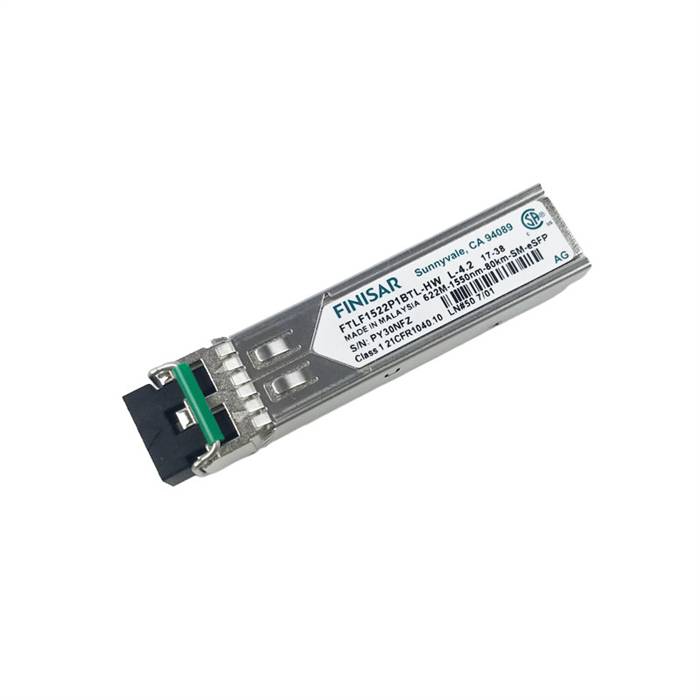

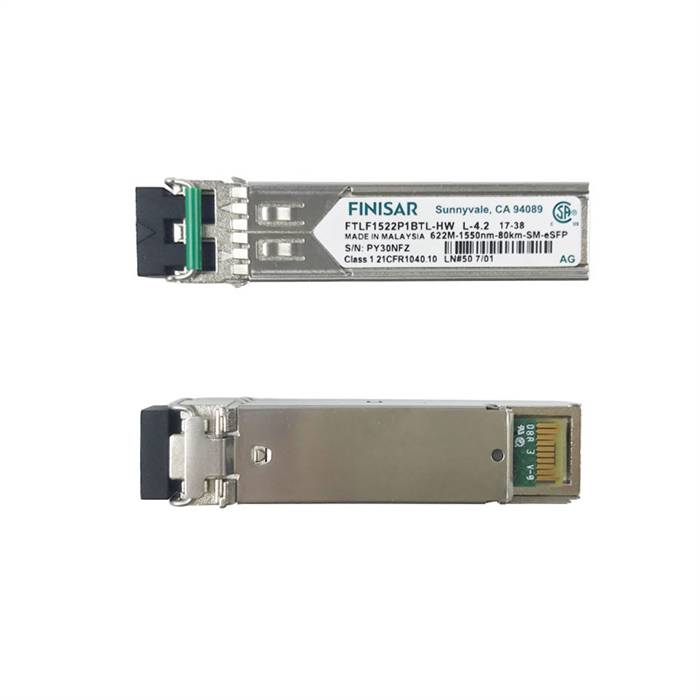

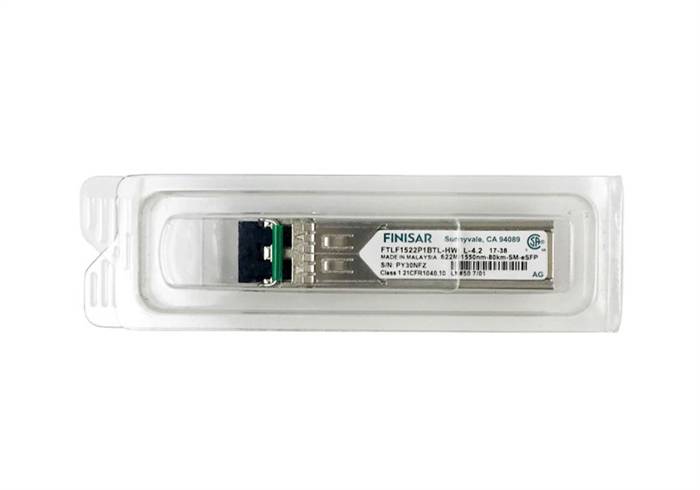

II-VI Finisar 622M 1550nm 80km SM eSFP Transceiver Module
II-VI Finisar FTLT1522P1BTL-HW

Alternative Views:
Our Price: $80.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTLT1522P1BTL-HW
Qty:

Description

The II-VI Finisar FTLT1522P1BTL-HW Small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They comply with SONET and SDH standards at OC-12 LR-2/STM L-4.2. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features
  • 622 Mb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Built-in digital diagnostic functions
  • Uncooled DFB 1550nm laser transmitter
  • Duplex LC connector
  • RoHS compliant
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply
  • Low power dissipation <700mW typical
  • Industrial operating temperature range: -40°C to 85°C

Applications
  • SONET OC-12 LR-2 / SDH STM L-4.2

Specifications
  • Data Rate (max): 622 Mb/s
  • Connector: Duplex LC
  • Wavelength: 1550nm
  • Distance: 80 km
  • Diagnostics: Digital
  • Transmitter: DFB Laser
  • Receiver: PIN
  • Voltage Supply: 3.3V
  • Low End Case Temperature: -40°C
  • High End Case Temperature: 85°C
  • Protocol: SONET OC-12 Compliant Wireless CPRI Compliant
