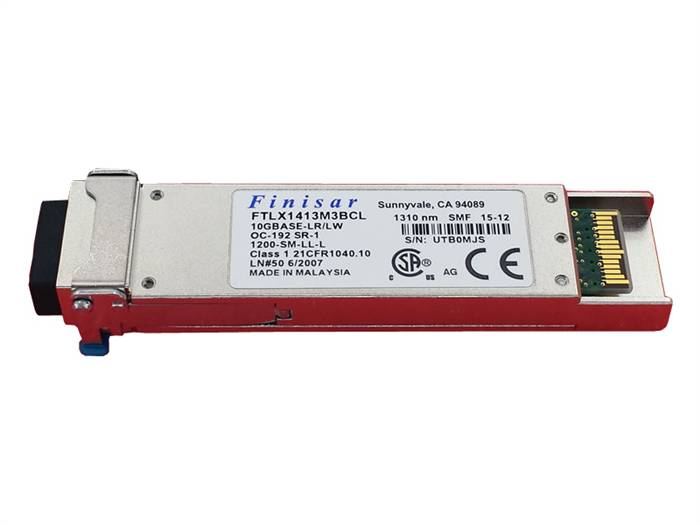

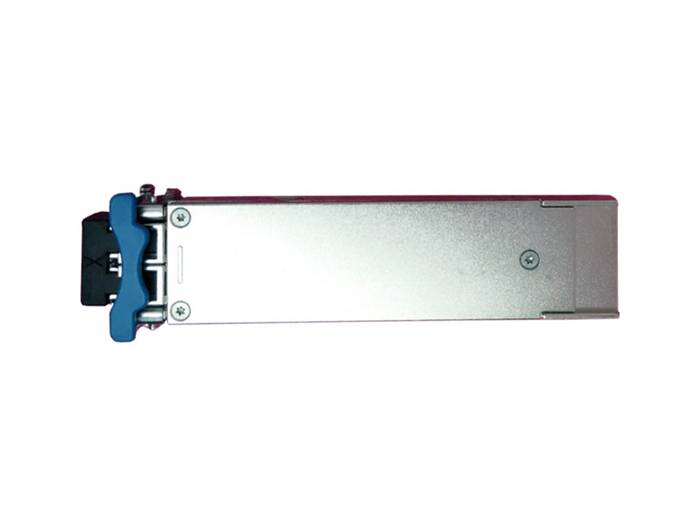

Finisar FTLX1413M3BCL 10GBASE-LR/OC-192 SR-1 Multirate 10km XFP Optical Transceiver
Genuine Finisar FTLX1413M3BCL

Alternative Views:
Our Price: $215.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTLX1413M3BCL
Qty:

Description

FTLX1413M3BCL Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They are a true multi-protocol transceiver complying with SONET OC-192 SR-1, SDH STM I-64.1, 10-Gigabit Ethernet 10GBASE-LR /LW per IEEE 802.3ae, 10G Fibre Channel 1200-SM-LL-L, 8G Fibre Channel 800-SM-LC-L, 10G CPRI, and ITU-T. G709 OTN/FEC protocols OTU1e, OTU2, and OTU2e. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features
  • Supports 8.5Gb/s to 11.32Gb/s bit rates
  • Power dissipation <1.5W
  • RoHS compliant
  • Hot pluggable XFP footprint
  • Single Power supply: 3.3V
  • Maximum link length of 10km
  • Uncooled 1310nm DFB laser
  • No Reference Clock required
  • Built-in digital diagnostic functions
  • Temperature range -5°C to 75°C

Applications
  • SONET/SDH OC-192 SR-1 ITU G.693, VSR2000-2R1
  • 10GBASE-LR /LW 10G Ethernet
  • 1200-SM-LL-L 10G Fibre Channel and 800-SM-LC-L 8G Fibre Channel
  • ITU G.709 OTN/FEC OTU1e, OTU2, OTU2e
  • 10G CPRI

Specifications
  • Distance: 10 km
  • Data Rate (max): 11.3 Gb/s
  • Protocol: 8x Fibre Channel Compliant SONET OC-192 Compliant 10x Fibre Channel Compliant 10 Gigabit Ethernet Compliant Wireless CPRI Compliant
  • Low End Case Temperature (°C): -5
  • High End Case Temperature (°C): 75
  • Diagnostics: Digital
  • Transmitter: DFB Laser
  • Receiver: PIN
  • Voltage Supply: 3.3
  • Connector: LC
  • Wavelength: 1310nm
