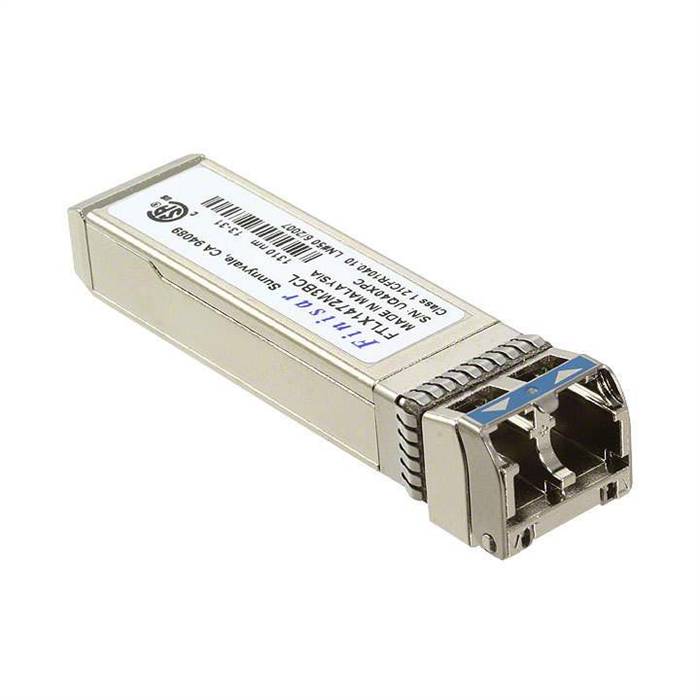

Finisar FTLX1472M3BNL 10GBASE-LR/OC-192 SR-1 Multirate 10km Extended Temperature SFP+ Optical Transceiver
Genuine Finisar FTLX1472M3BNL

Our Price: $360.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTLX1472M3BNL
Qty:

Description

FTLX1472M3BNL 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit, multi-rate links up to 10km over G.652 single mode fiber.
These transceivers are equipped with internal transmitter and receiver retimers (Clocks and Data Recover or CDR) to comply to SONET/SDH jitter requirements and to enhance host cards high speed data-signal integrity.
They are compliant with SFF-8431, SFF-8432, ITU-T G.693 VSR2000-2R1, SDH I-64.1 and OTN P1I1-2D1 (up to 2km), IEEE 802.3ae 10GBASE-LR/LW and 10G Fibre Channel 1200-SM-LL-L (up to 10km).
Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features
  • Hot-pluggable SFP+ footprint
  • Up to 10km link length
  • 6.14, 8.5 and 9.83 through 11.3Gb/s bit rates
  • < 1.5W power dissipation, <1.0W with CDR's OFF
  • RoHS compliant
  • Single 3.3V power supply
  • Uncooled 1310nm DFB laser
  • Receiver limiting electrical interface
  • Duplex LC connector
  • Built-in digital diagnostic functions
  • FTLX1472M3BNL: Commercial temperature range -5°C to 85°C

Applications
  • 10G NRZ SONET VSR2000-2R1, SDH I-64.1, OTN P1I1-2D1
  • 10G Ethernet 10GBASE-LR/-LW
  • G.709 OTU 1e/2/2e FEC bit rates
  • 8.5G and 10G Fibre Channel
  • 6.144 and 9.83Gb/s CPRI

Specifications
  • Distance: 10 km
  • Data Rate (max): 11.3 Gb/s
  • Protocol: 8x Fibre Channel Compliant SONET OC-192 Compliant 10x Fibre Channel Compliant 10 Gigabit Ethernet Compliant
  • Low End Case Temperature (°C): -5
  • High End Case Temperature (°C): 85
  • Diagnostics: Digital
  • Transmitter: DFB Laser
  • Receiver: PIN
  • Voltage Supply: 3.3
  • Connector: LC
  • Wavelength: 1310nm
