Home > OEM > Finisar >

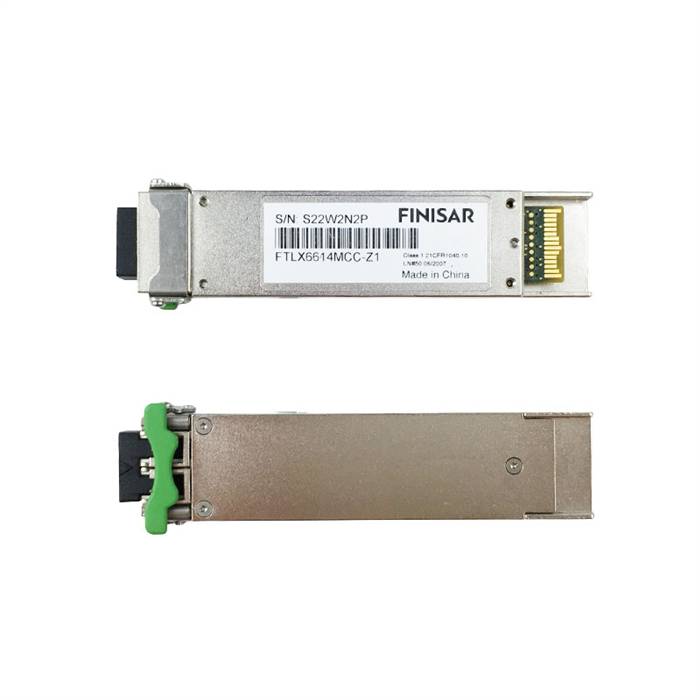

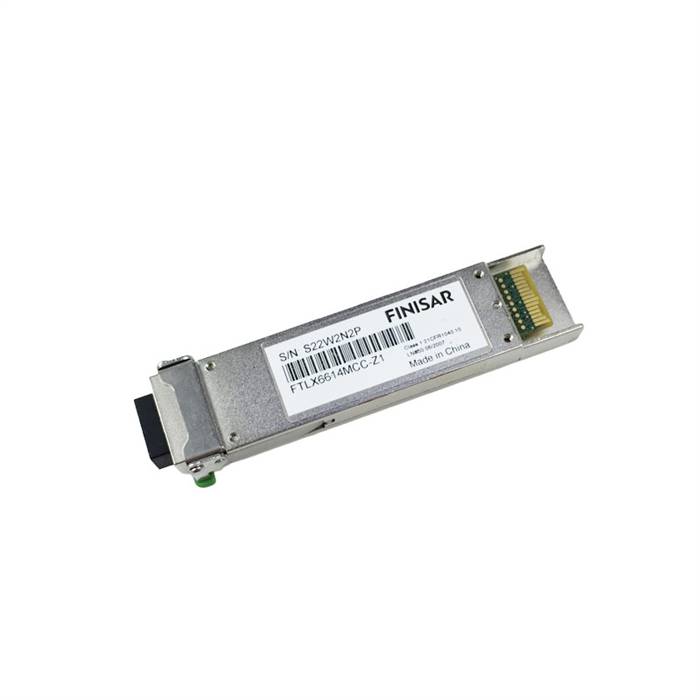

II-VI Finisar 10G DWDM Tunable C-Band 50GHz 40km SMF XFP Optical Module
II-VI Finisar FTLX6614MCC-Z1

Alternative Views:
Our Price: $180.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: FTLX6614MCC-Z1
Qty:

Description

The II-VI Finisar FTLX6614MCC-Z1 Small Form Factor 10Gb/s (XFP) transceiver complies with the XFP Multi-Source Agreement (MSA) Specification. It supports amplified DWDM 10Gb/s SONET/SDH, 10 Gigabit Ethernet, and 10 Gigabit Fibre Channel applications over 40km of fiber without dispersion compensation. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC, and Finisar Application Note AN-2038.

Features
  • Supports 8.5Gb/s to 11.35Gb/s
  • -800 to +800 ps/nm Dispersion Tolerance
  • Supports 50GHz ITU-based channel spacing (C-Band) with a wavelength locker
  • Monolithic MZM Tunable TOSA
  • Temperature range: -5°C to 70°C
  • RoHS-6 Compliant (lead-free)
  • Power dissipation <3.5W
  • Built-in digital diagnostic functions
  • High performance PIN Receiver
  • Adjustable receiver threshold with option for automatic optimization through FEC feedback

Applications
  • DWDM 10Gb/s SONET/SDH
  • DWDM 10Gb/s Ethernet & 10Gb/s Fibre Channel
  • DWDM 10Gb/s SONET/SDH w/FEC
  • DWDM 10Gb/s Ethernet and 10Gb/s Fibre Channel w/FEC

Specifications
  • Data Rate (max): 11.35Gb/s
  • Connector: Duplex LC
  • Wavelength: C-Band DWDM Tunable
  • Distance: 40 km
  • Diagnostics: Digital
  • Transmitter: Tunable + InP MZM
  • Receiver: PIN
  • Voltage Supply: 3.3V, 5V
  • Low End Case Temperature: -5°C
  • High End Case Temperature: 70°C
  • Protocol: 8x Fibre Channel Compatible SONET OC-192 Compliant 10x Fibre Channel Compliant 10 Gigabit Ethernet Compliant
